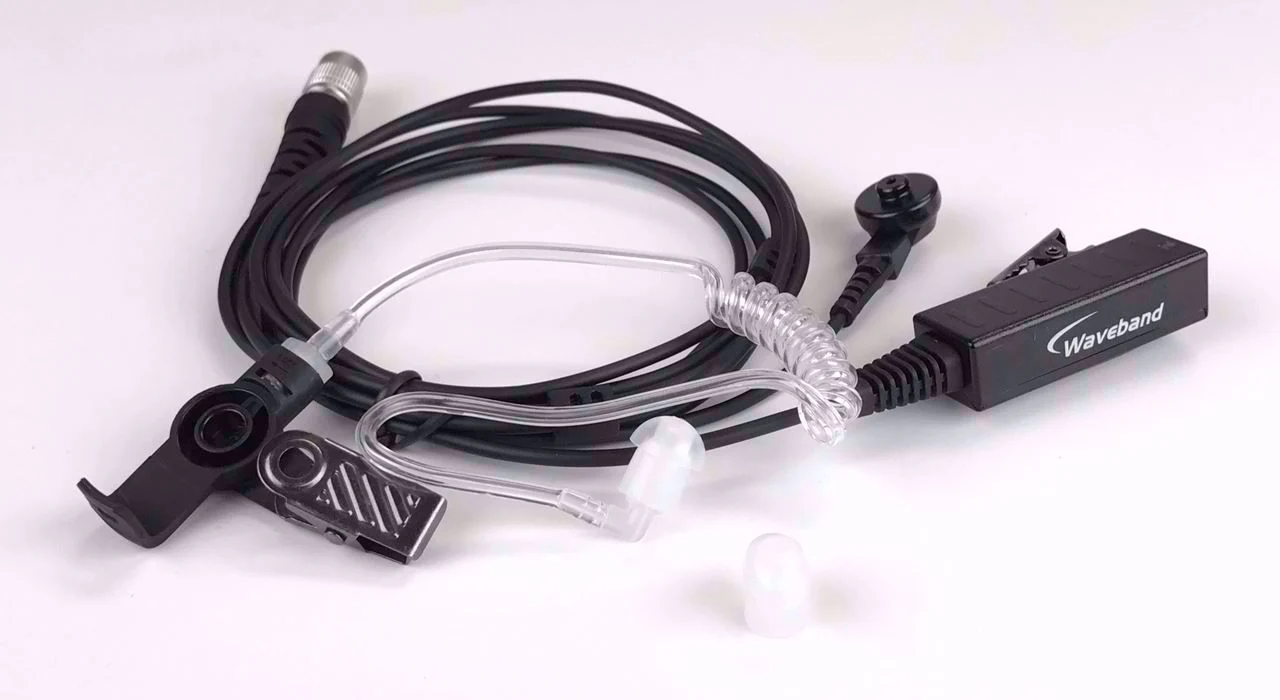

Motorola ZMN6022A 2 Wire Surveillance Kit for Motorola XTS1500 Portable Radio

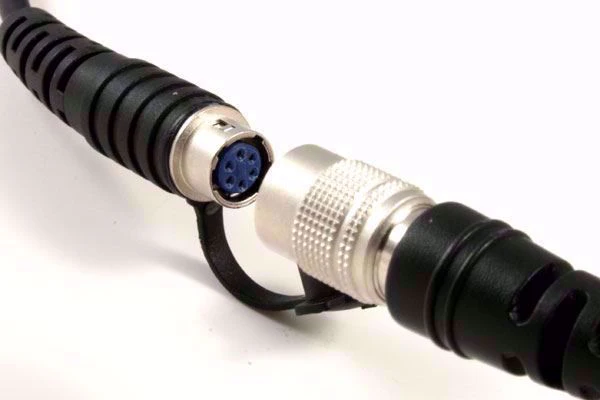

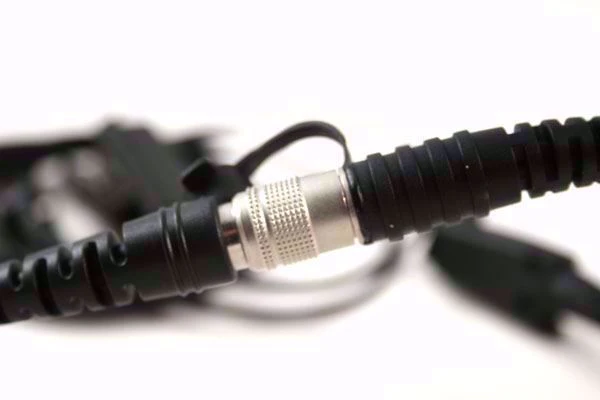

Be discreet and listen to your two-way radio covertly with Waveband's Two-Wire Surveillance Kit. Compatible with the XTS1500 two-way radio, has a quick disconnect Hirose connector to easily don on and off from your portable. No more needing to undress to remove your accessories from your clothing, simply pull up on the connector and your radio is free. This is a perfect solution for law enforcement, security, FBI, or surveillance teams.

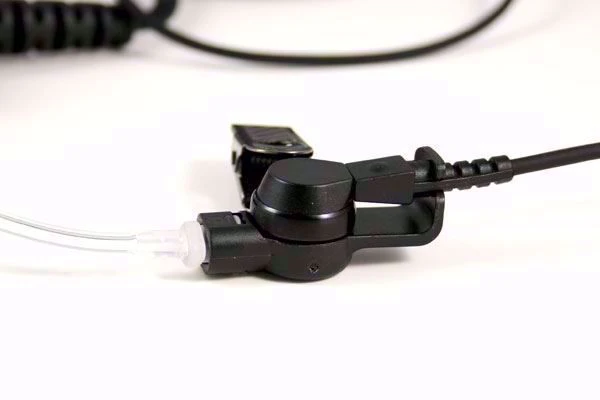

Made with Kevlar reinforced cables, one wire includes a medical-grade clear acoustic earpiece while the other houses the combined Knowles premium sound microphone and push-to-talk button with a heavy-duty alligator-style clip that securely attaches to your sleeve or uniform.
Kit Requires a quick-release adapter! Sold Separately. See below.
Motorola XTS1500 Quick Release Adapter
CABLING
Sheathing: Polyurethane
Cabling: Diameter 4.5mm, Earphone cable 3.0mm
SPEAKER
Impedance: 250 +-50 Ohms
SPL: 97 +-3dB
MICROPHONE
Type: Piezoelectric Accelerometer Microphone
Impedance: 250 +- 50 Ohm
Sensitivity: 97 +- 3dB
MECHANICAL
Axial Pull at Microphone: 15lbs
Axial Pull at PTT: 35lbs
Axial Pull at UDC: 35lbs
ENVIRONMENTAL
Operating Temperature: -30 to +75 Celsius
Storage Temperature: -40 to +85 Celsius
RoHS Compliant
WARRANTY
12 months on manufacturer’s defects.
Equivalent to: Motorola ZMN6032, Motorola ZMN6032A, Otto V1-10171.
Original: $73.58
-70%$73.58
$22.07More Images
