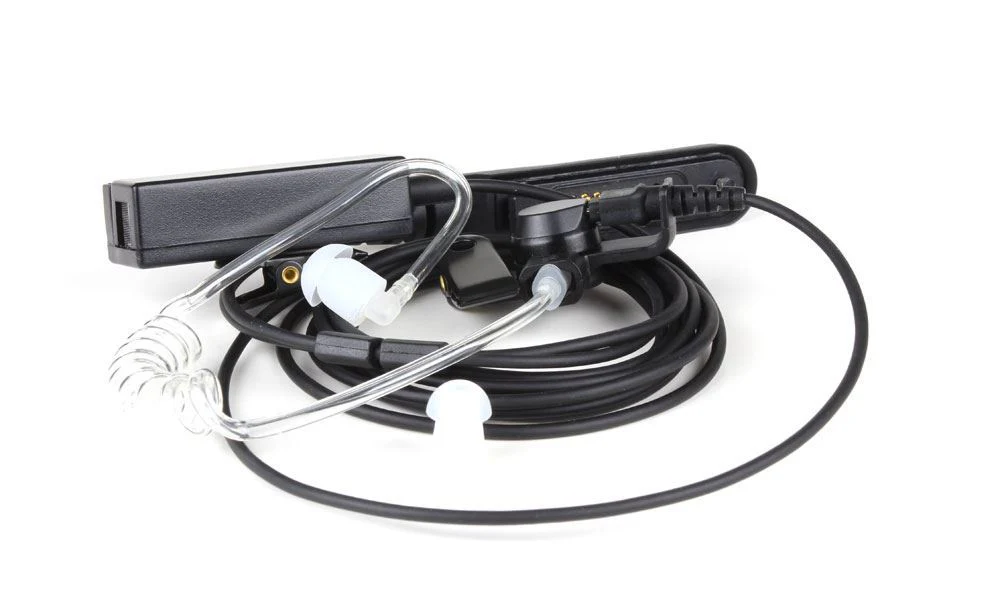

Relm KNG-P150, P400, P800 Two-Wire Surveillance Kit
Two-wire surveillance kit with Kevlar reinforced cable, premium Knowles microphone, QD medical grade clear acoustic and conical pins for RELM KNG-150P Radio.
Recommended for: Police, Fire, Military, Security law enforcement professionals.
AUDIO LIMITER
Conforms with Occupational Safety and Health Administration (OSHA) regulations. Electronically limits audio to the users ear to a safe maximum of 90dB to prevent hearing damage. Kits also available with volume control to allow users to temporarily exceed 90dB when in louder environments. Most low cost kits far exceed safe audio levels, unknowingly
causing hearing damage.
CABLING
Sheathing: Polyurethane
Cabling: Diameter 4.5mm, Earphone cable 3.0mm
SPEAKER
Impedance: 250 +-50 Ohms
SPL: 97 +-3dB
2-wire surveillance kit for RELM KNG Series Radio
MICROPHONE
Type: Piezoelectric Accelerometer Microphone
Impedance: 250 +- 50 Ohm
Sensitivity: 97 +- 3dB
MECHANICAL
Axial Pull at Microphone: 15lbs
Axial Pull at PTT: 35lbs
Axial Pull at UDC: 35lbs
ENVIRONMENTAL
Operating Temperature: -30 to +75 Celsius
Storage Temperature: -40 to +85 Celsius
RoHS Compliant
WC DAT R-KNG Specification Sheet
What happens if I can’t hear out of my earpiece?
Most likely, the surveillance kit is not defective. There may be moisture in the acoustic tube causing the transmission to not be heard or heard at a lower volume than before. We suggest cleaning out the removable acoustic tube and trying again. We have a great guide on how to clean your acoustic tube here.
What is the warranty period for surveillance kits?
Warranty for Waveband surveillance kits is 1 year from the date of purchase. This covers any manufacturing defects and workmanship. These defects can include the push to talk button being stuck and earpiece not transmitting or receiving. This warranty does not cover physical damage or abuse.
How long should I wait to replace my acoustic tube? Is it removable?
Due to hygiene factors, earwax, and moisture, acoustic tubes should be replaced every 3-6 months. The acoustic tubes are easily removable from the surveillance kit, allowing for easy replacement. We offer acoustic tube replacements, which you can find here.
