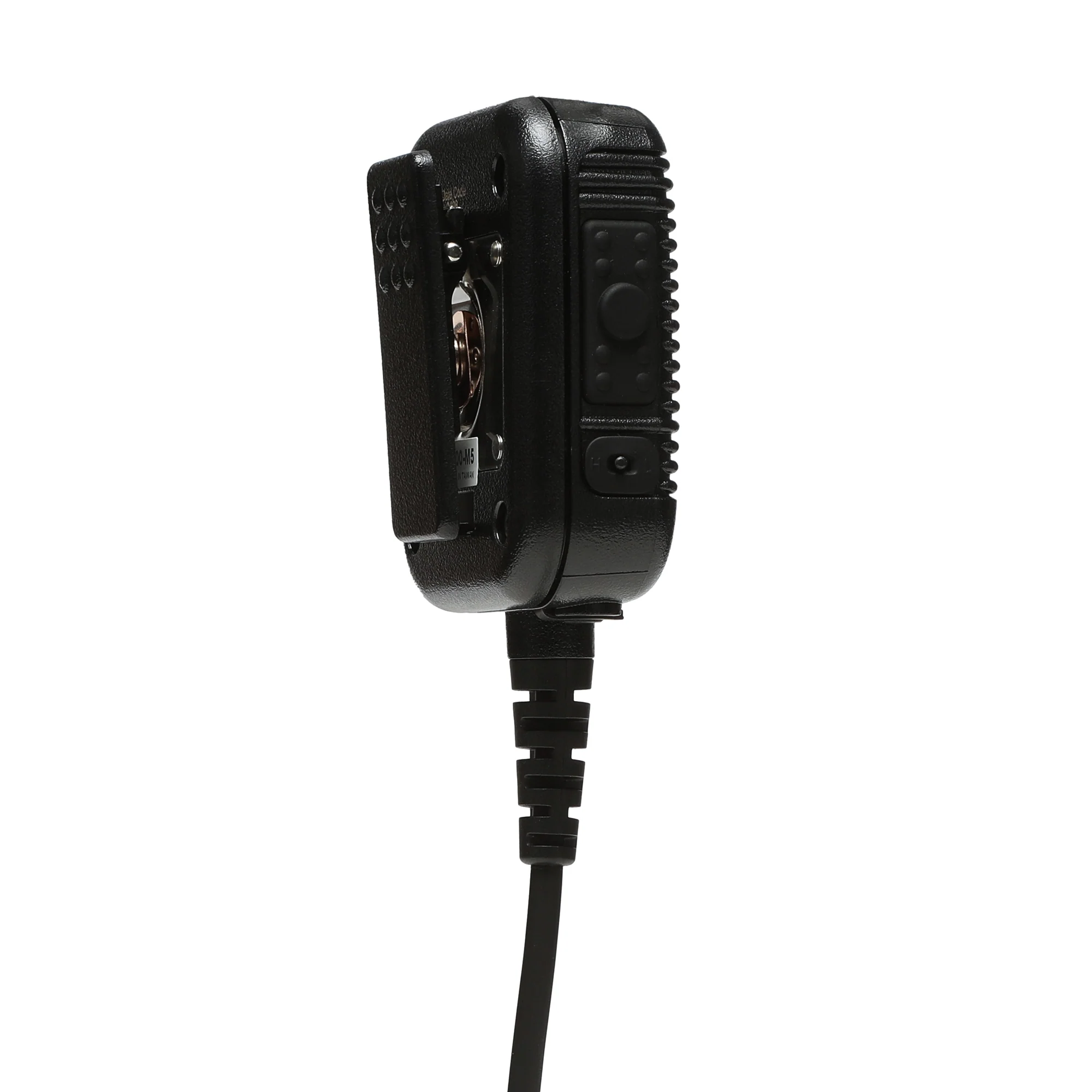

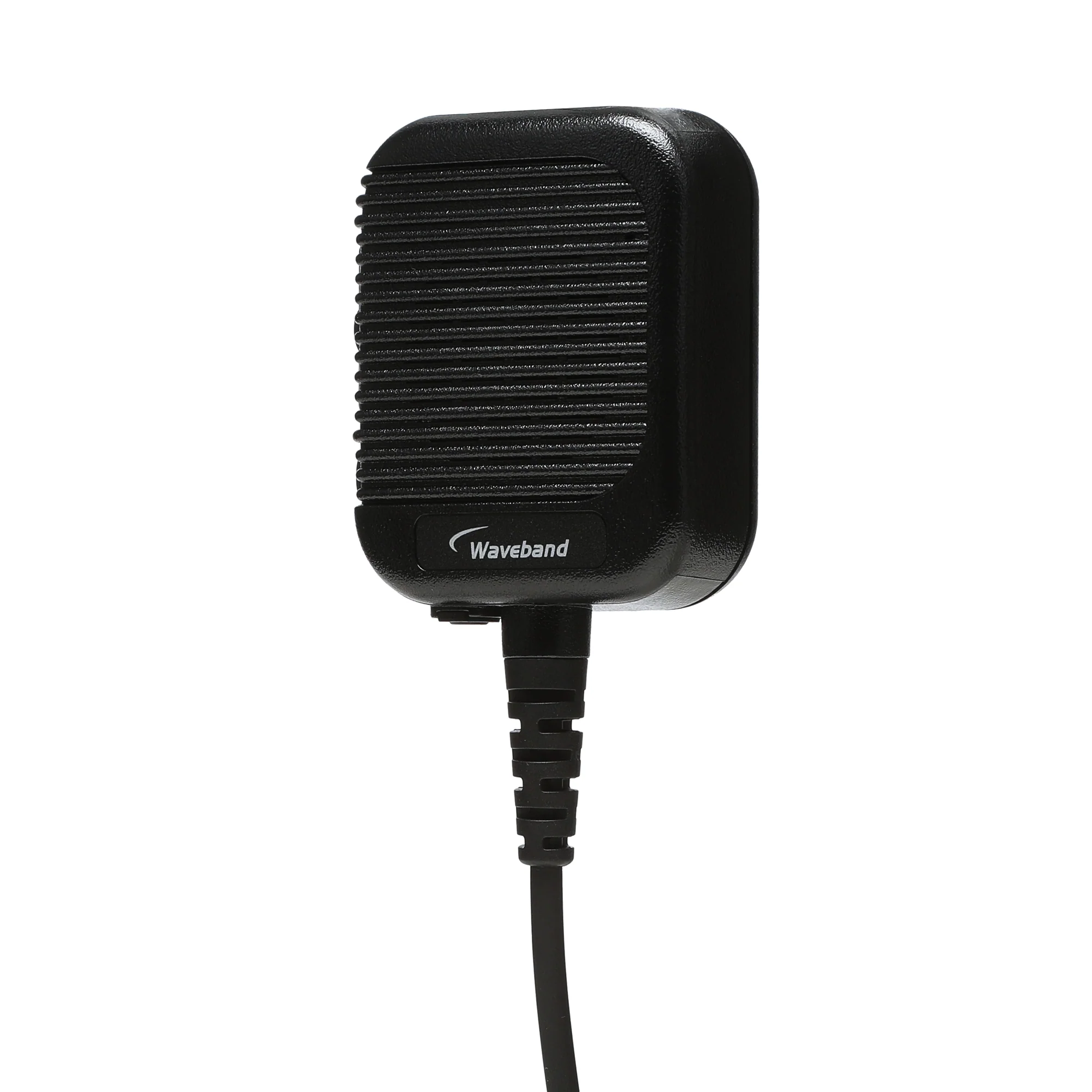

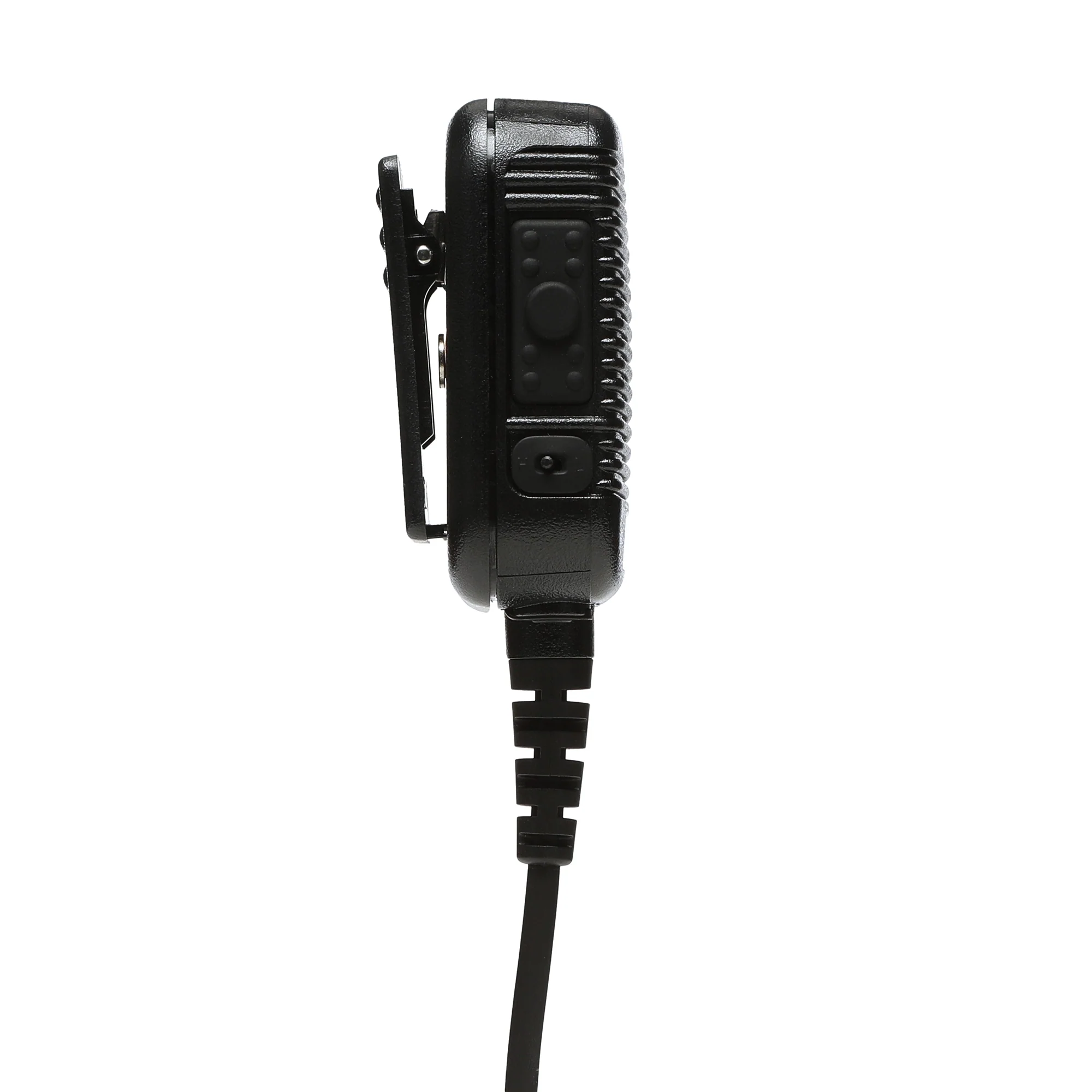

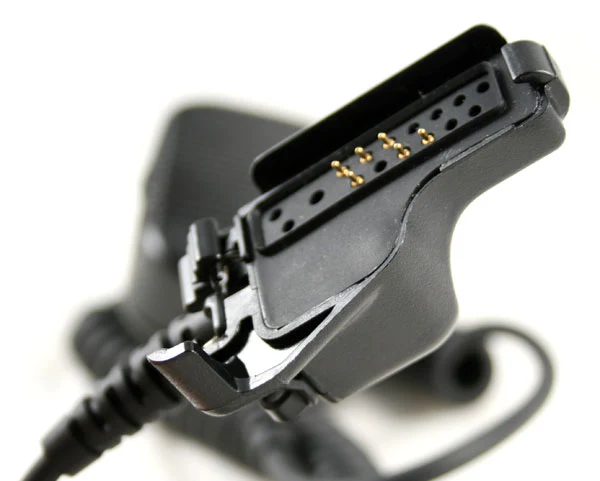

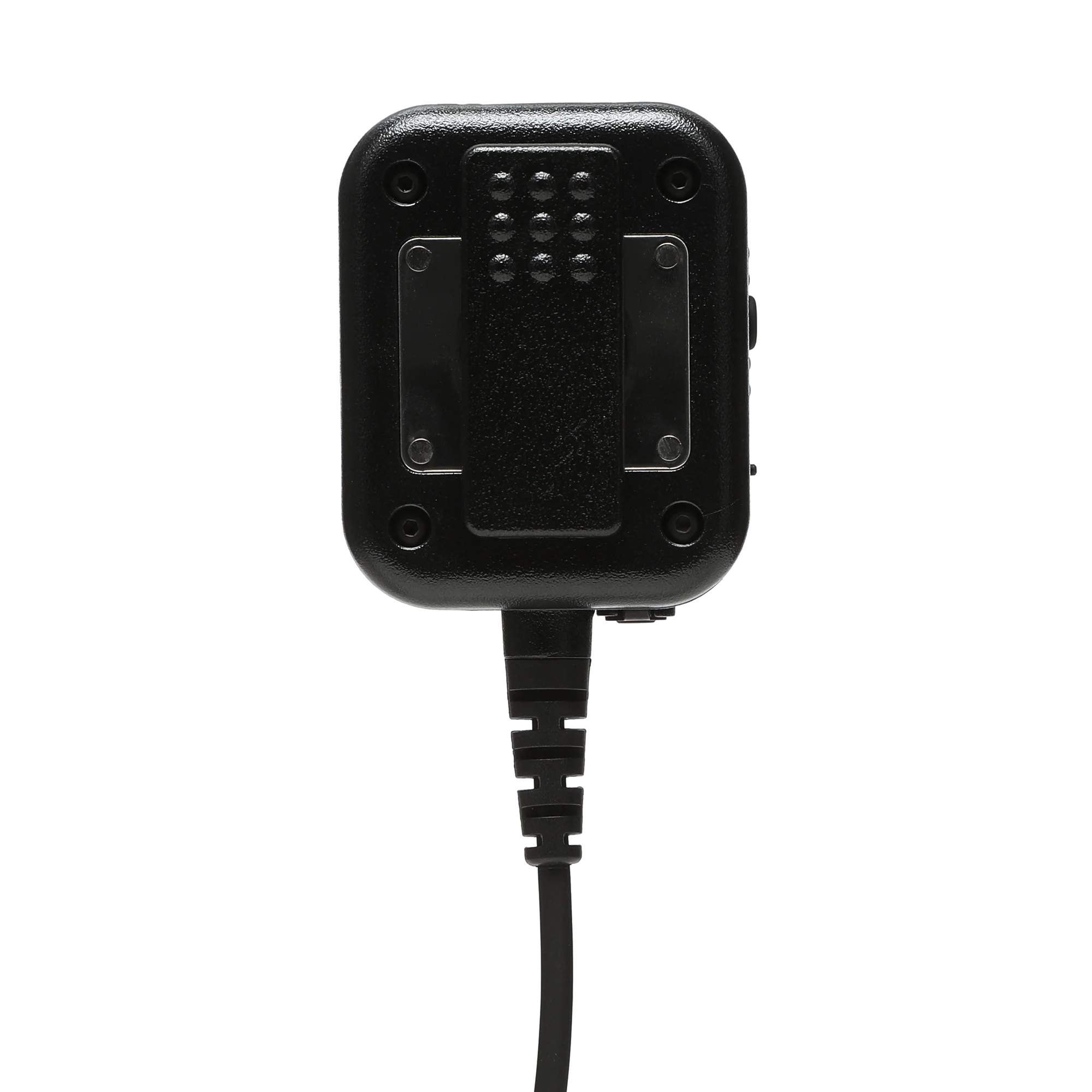

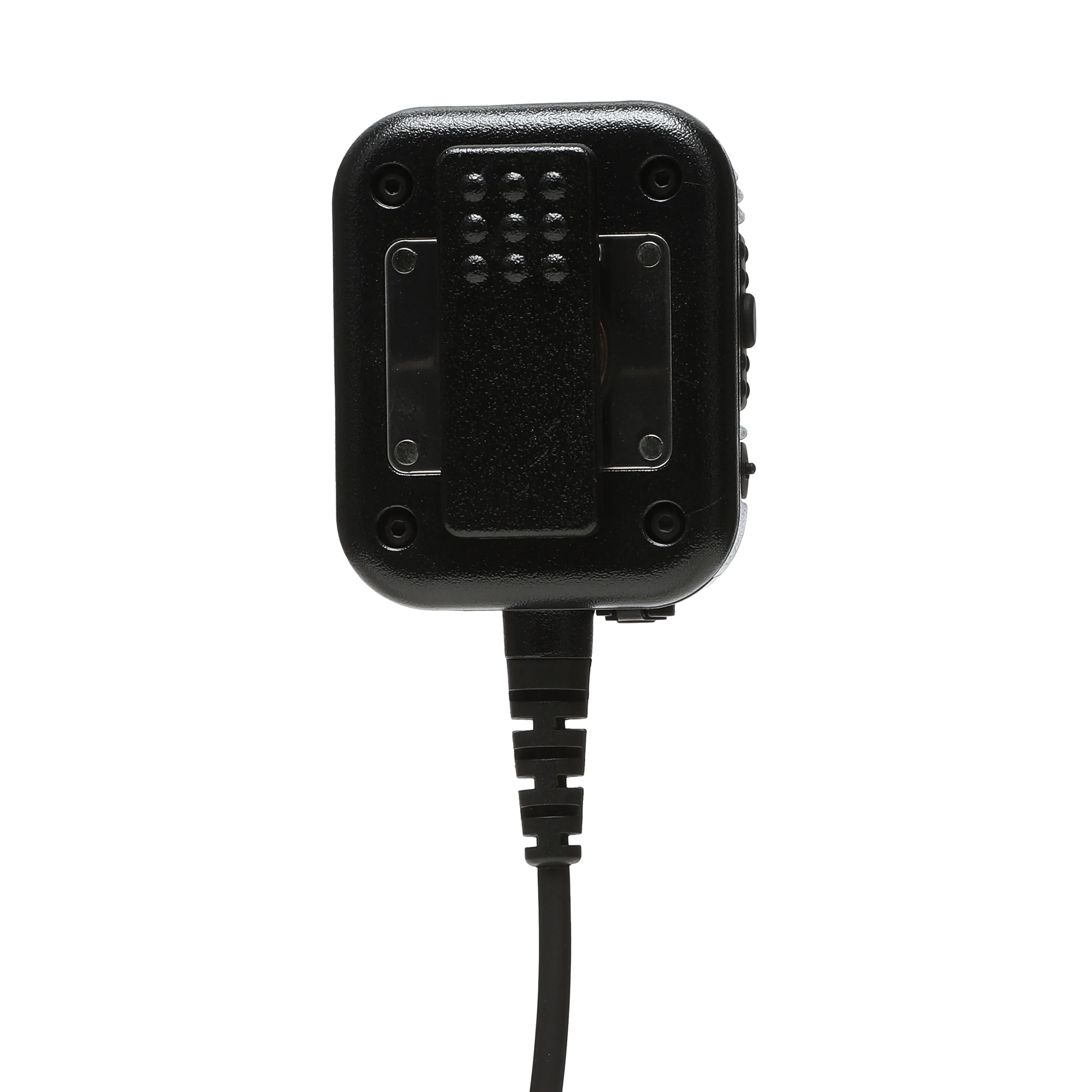

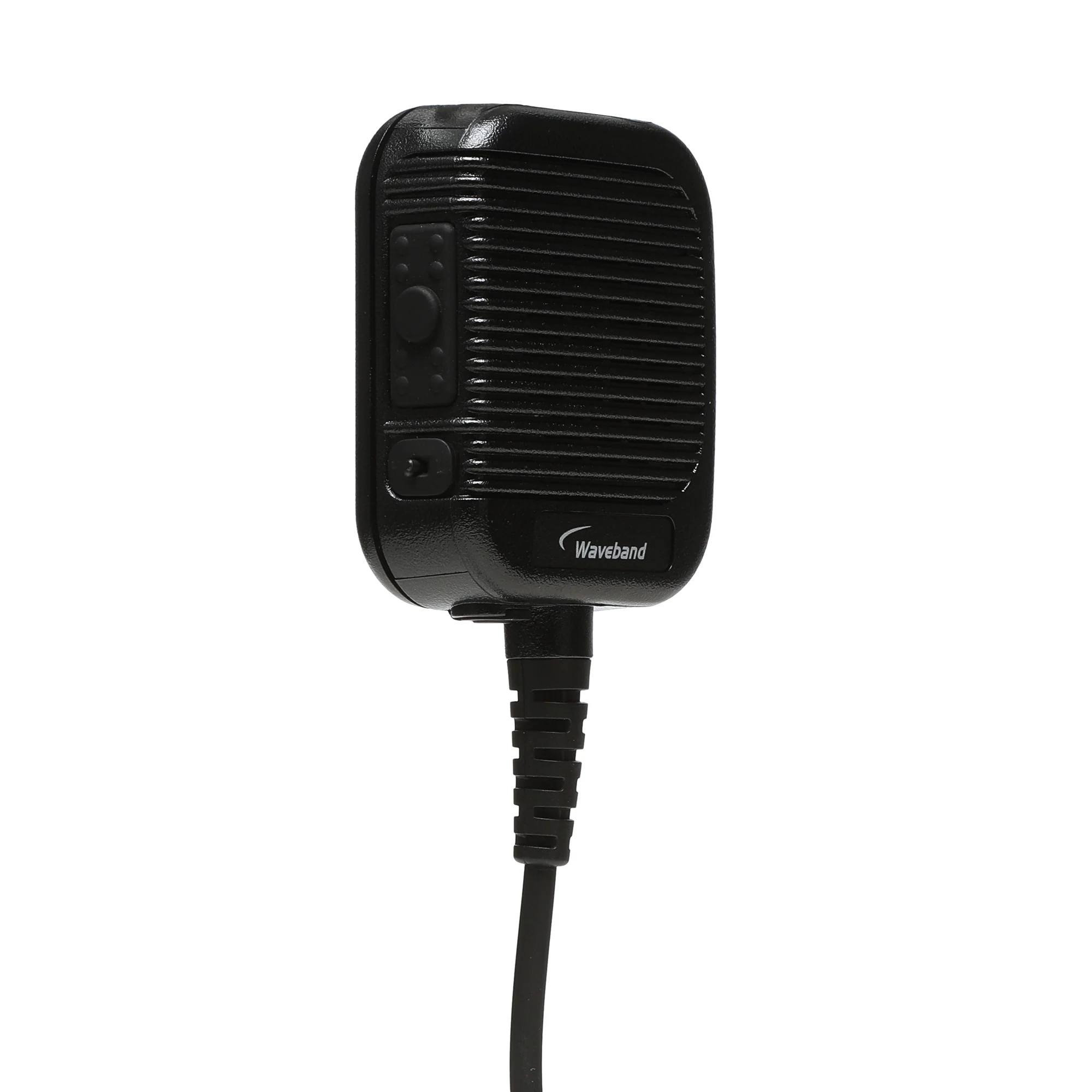

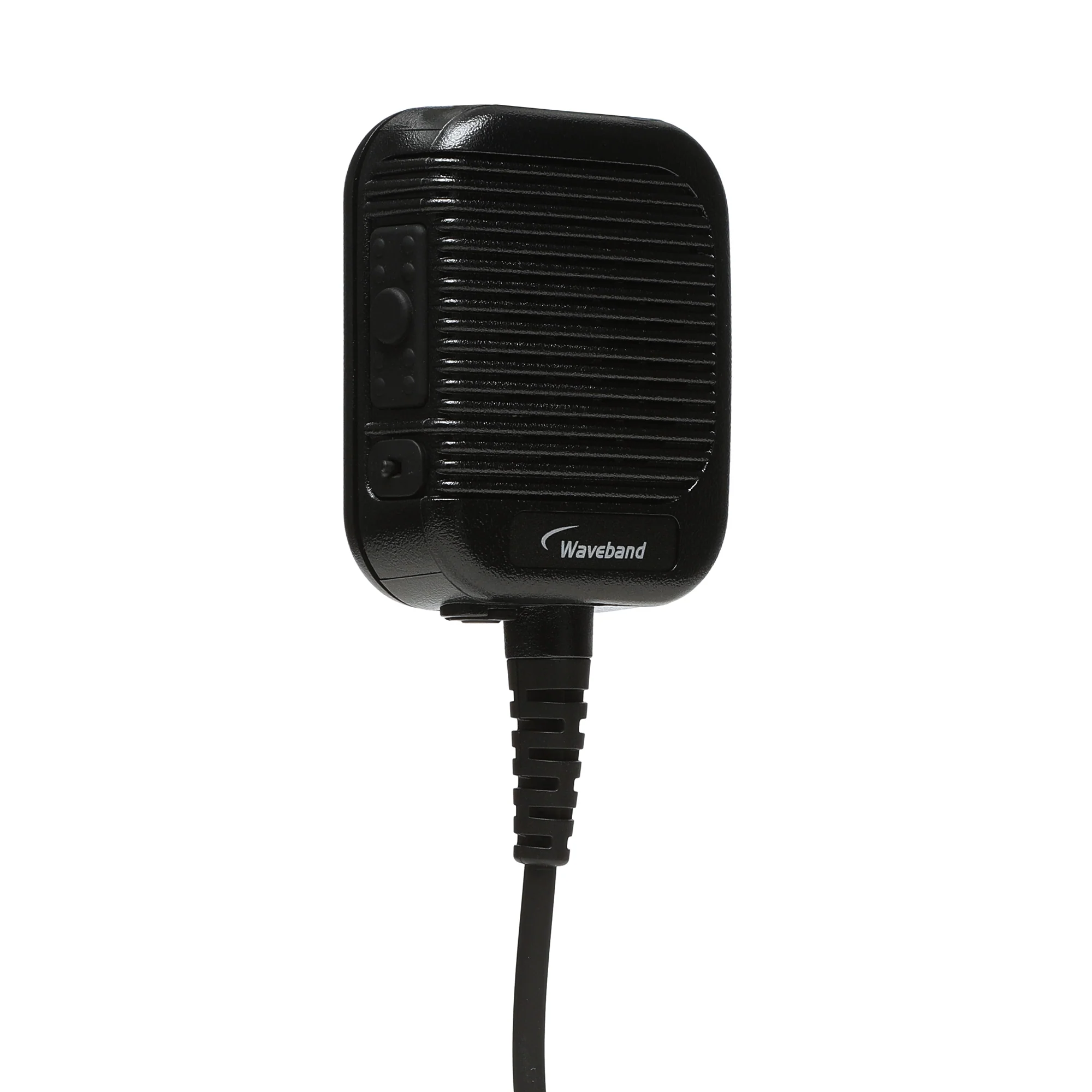

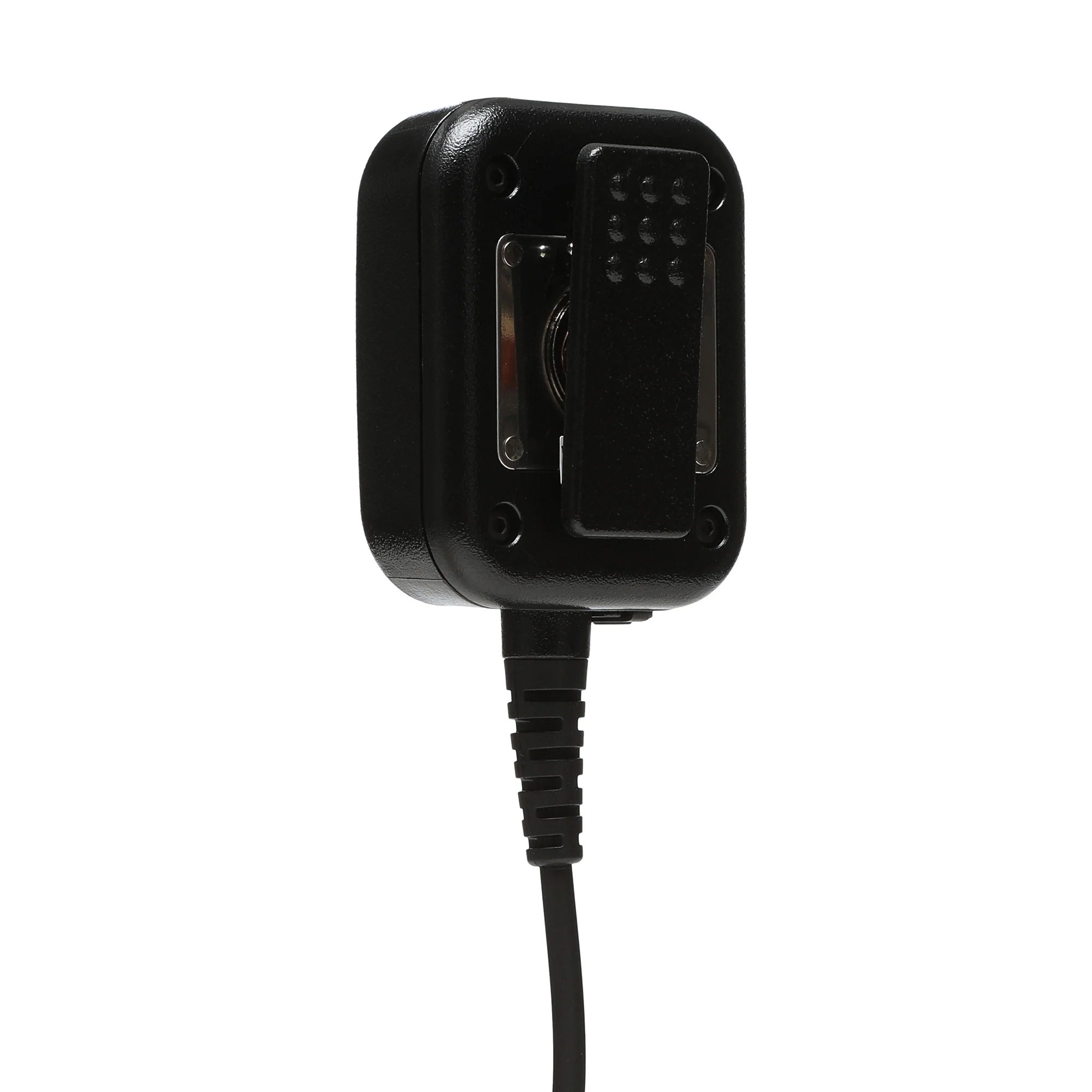

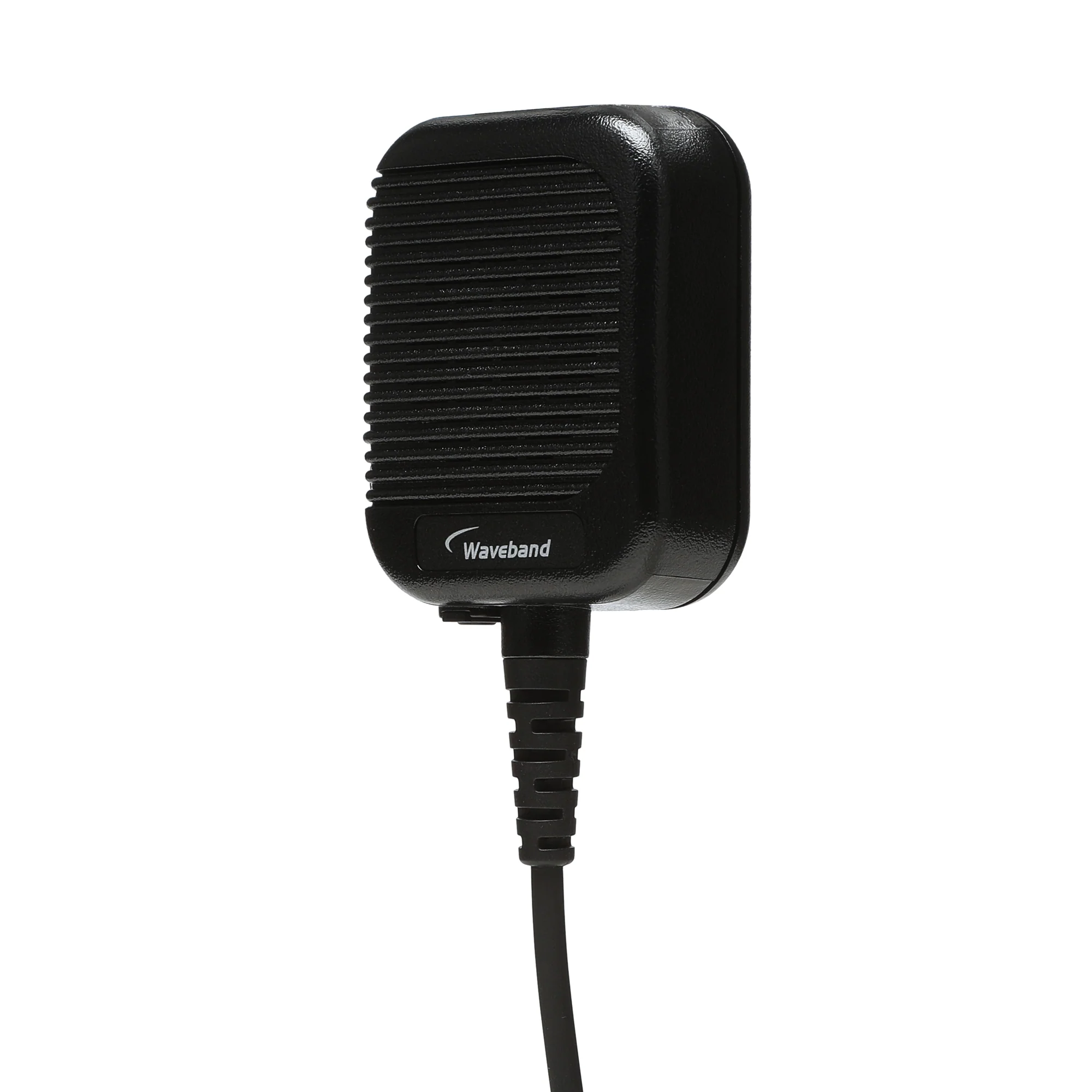

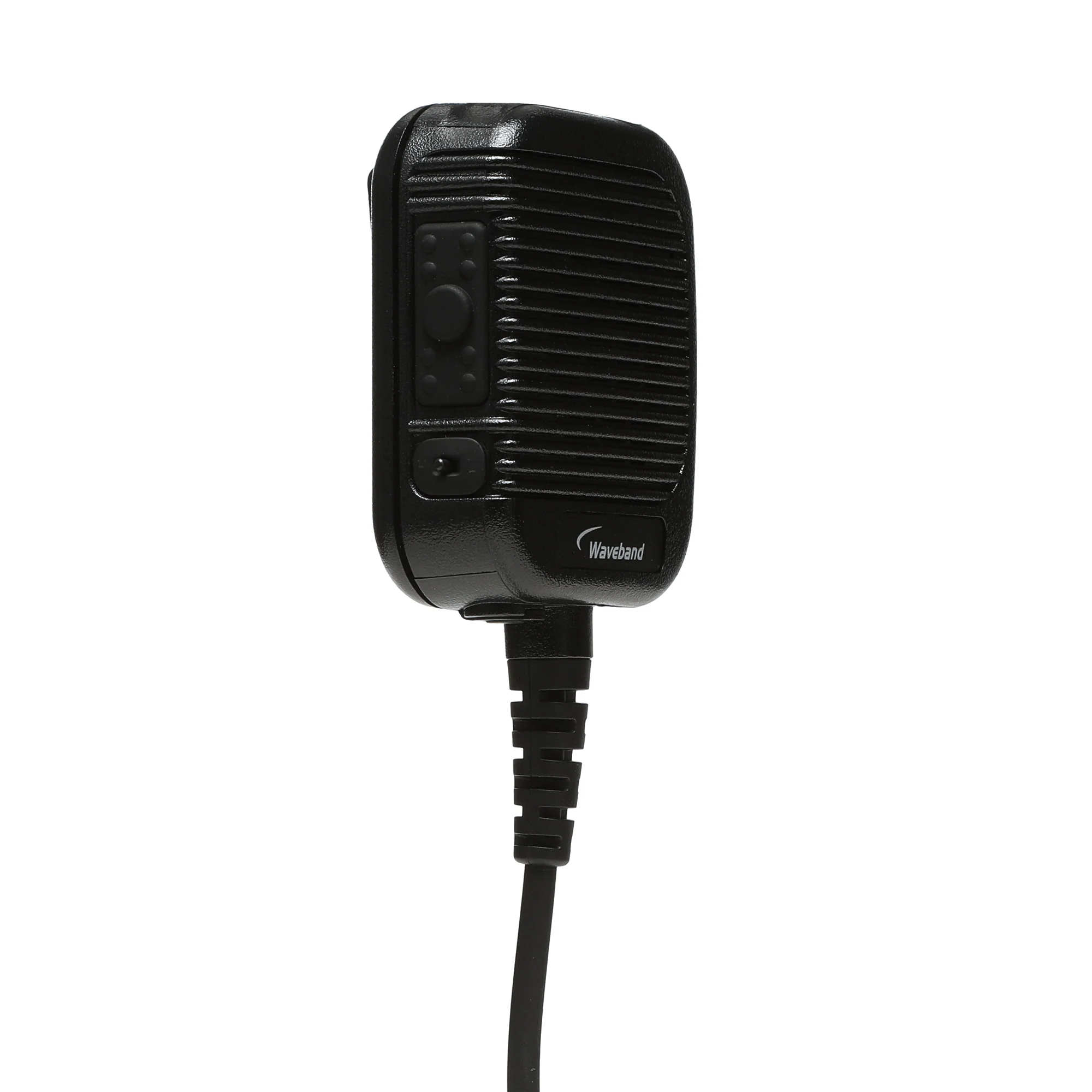

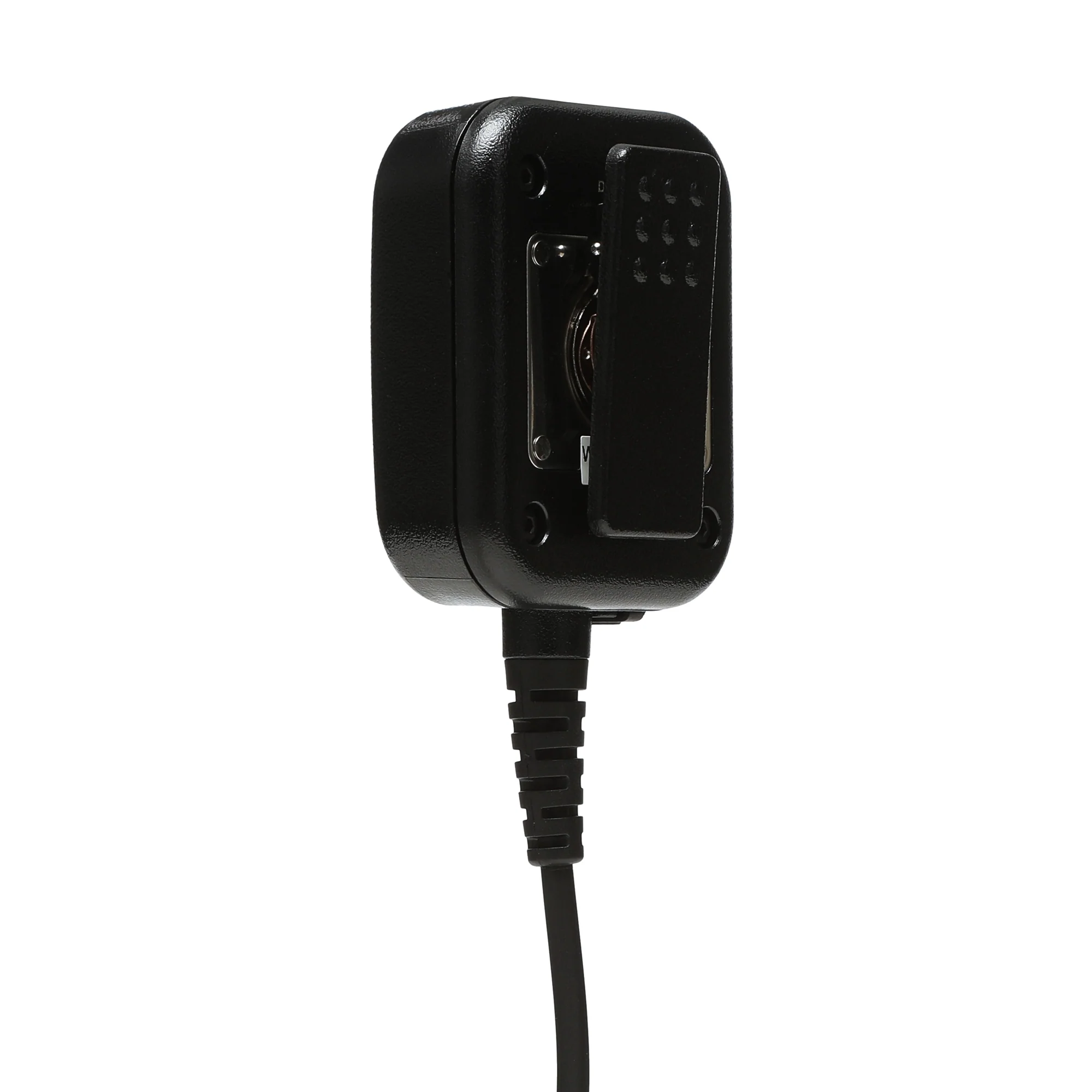

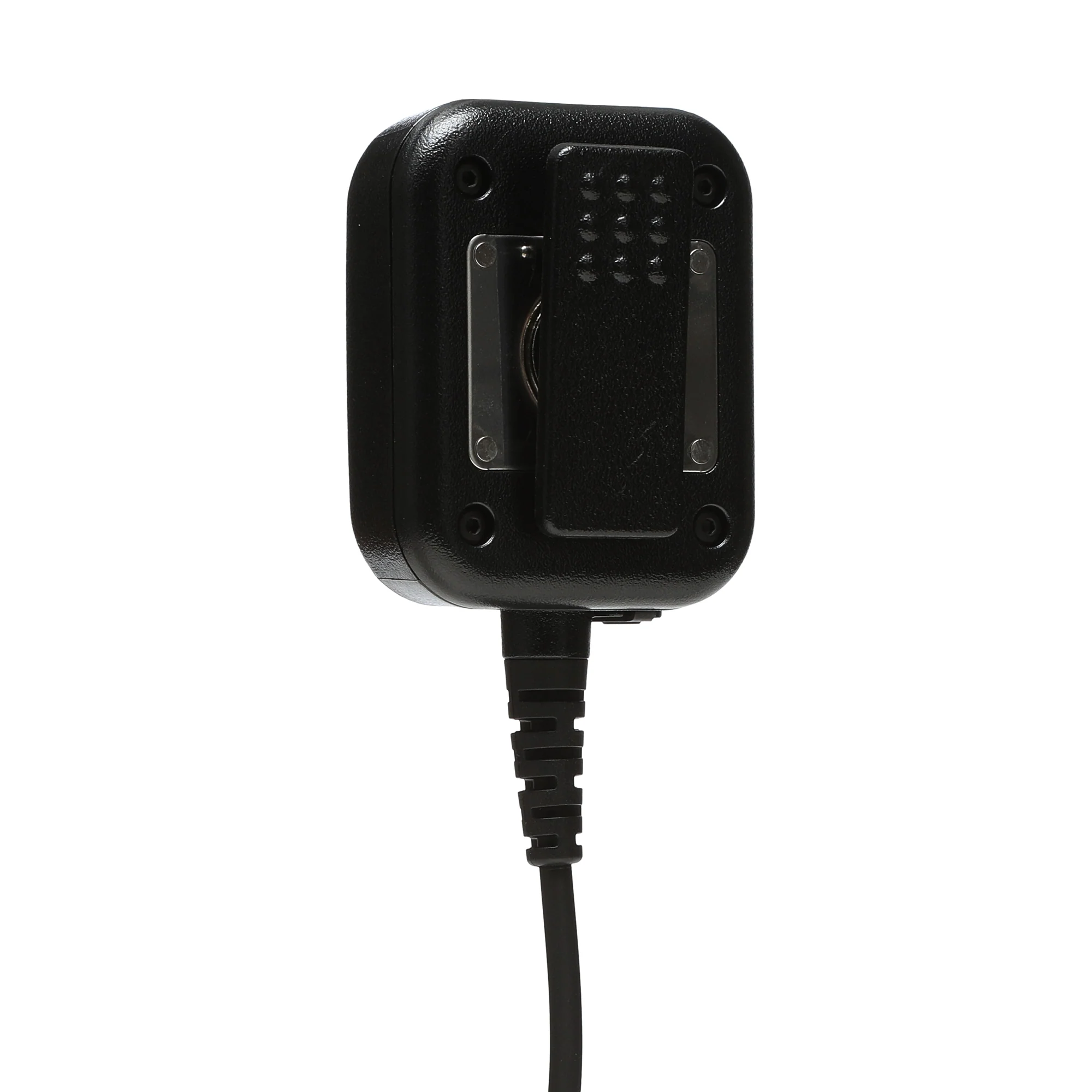

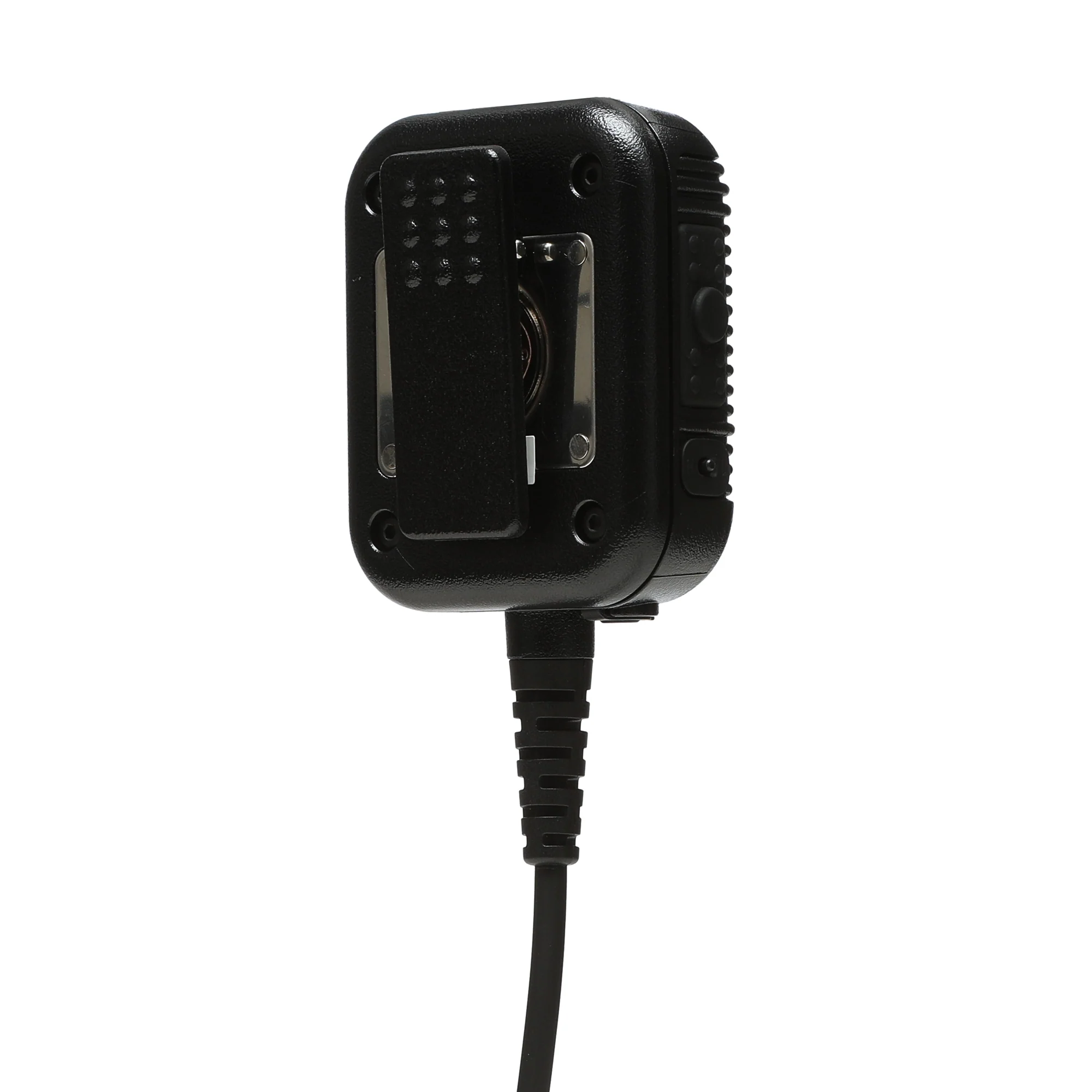

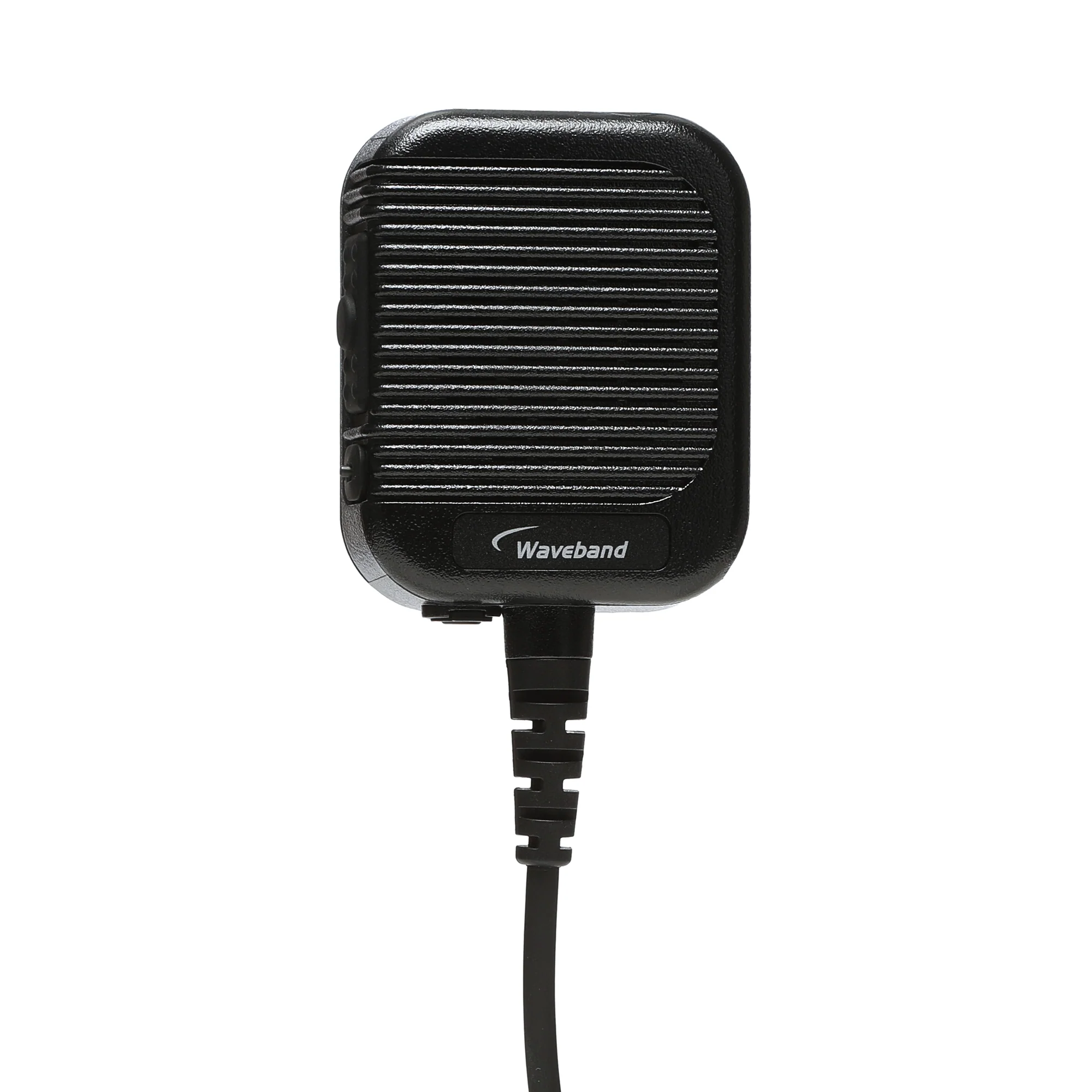

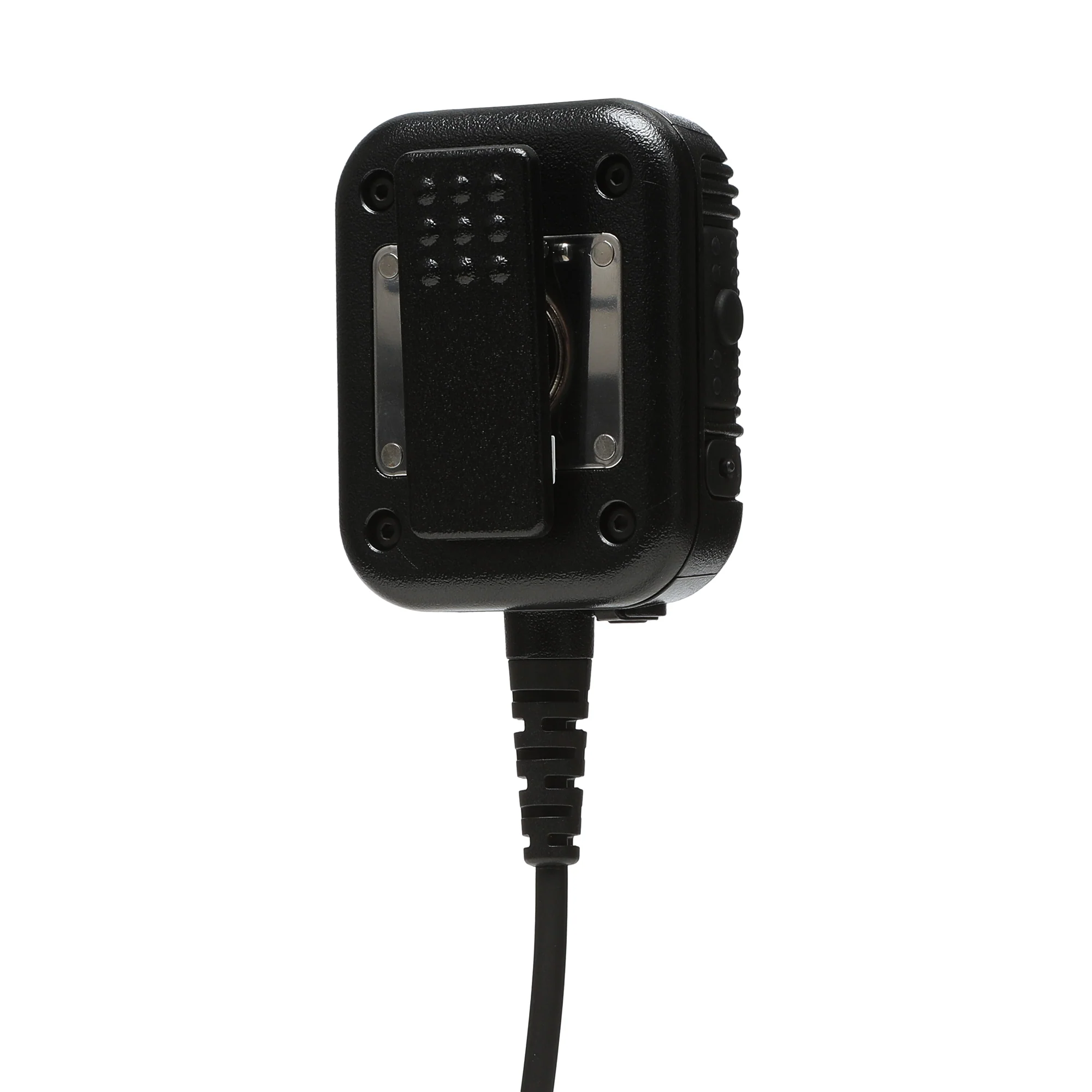

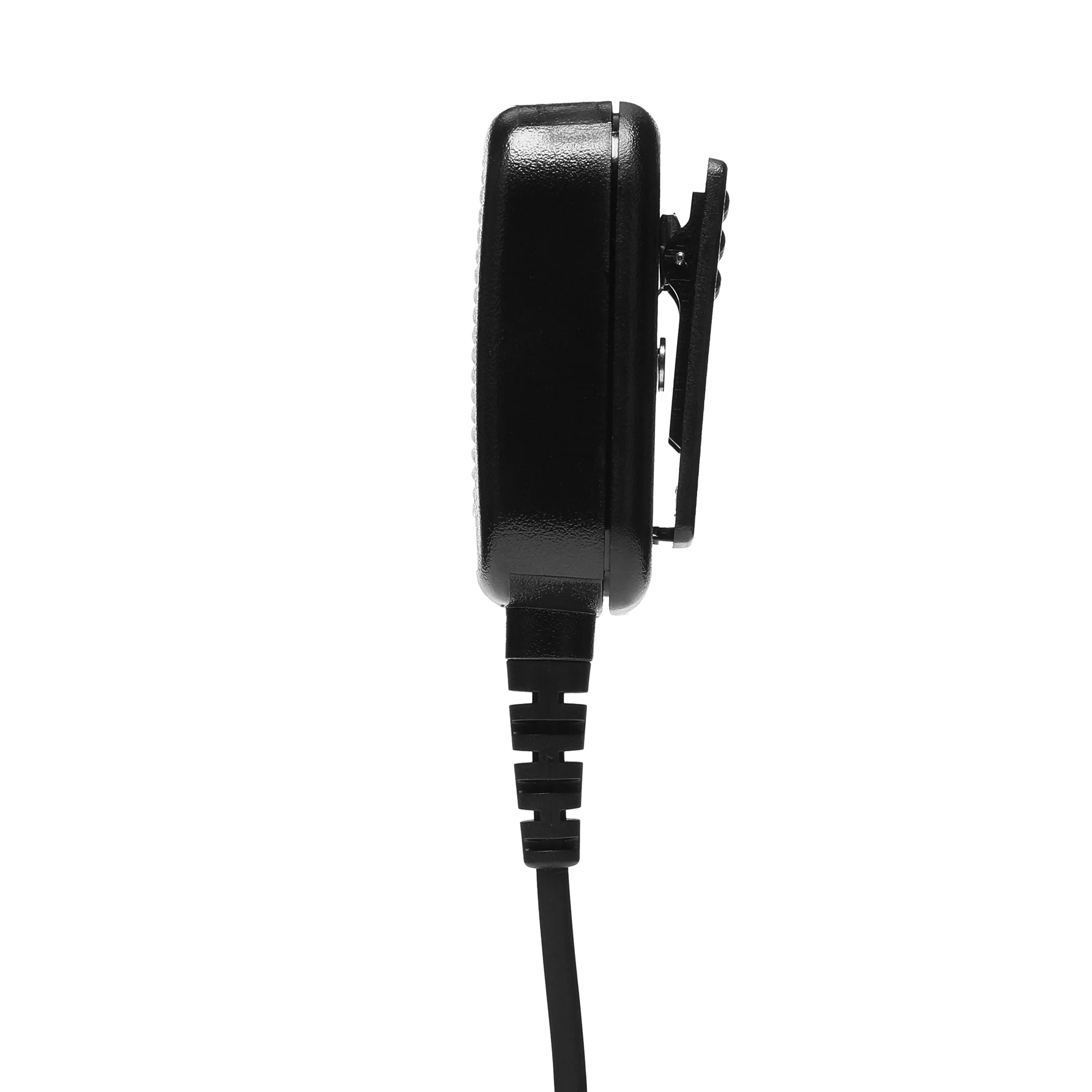

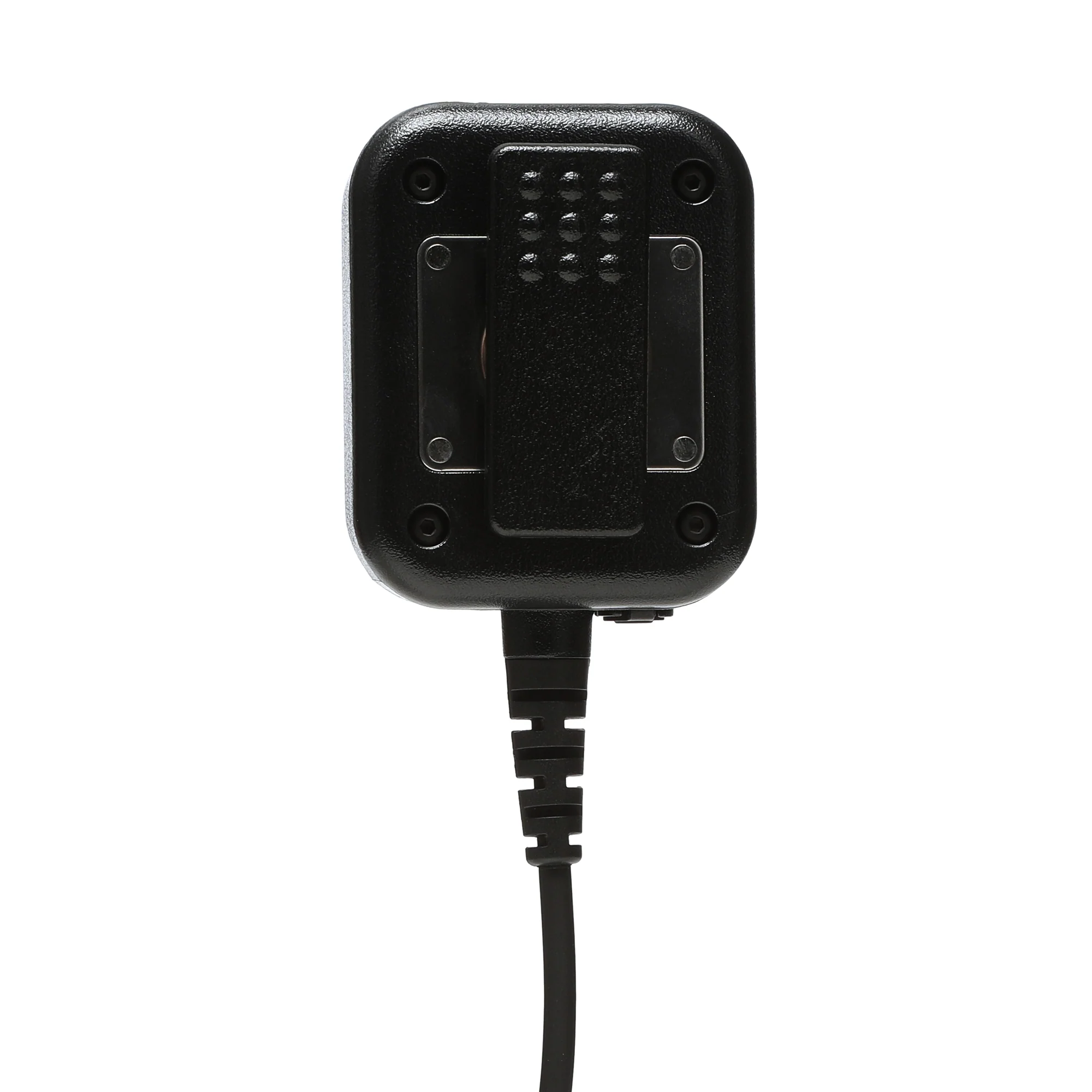

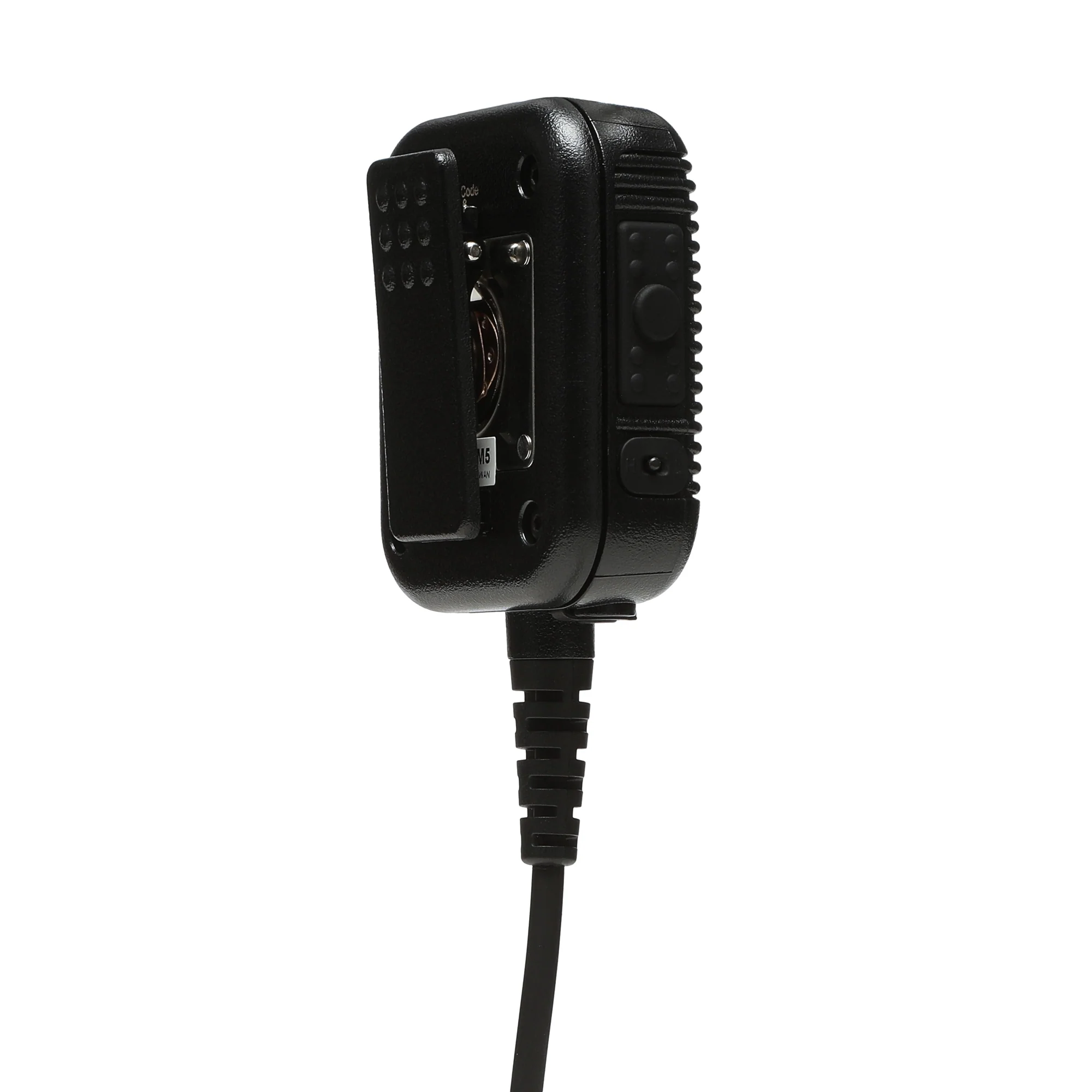

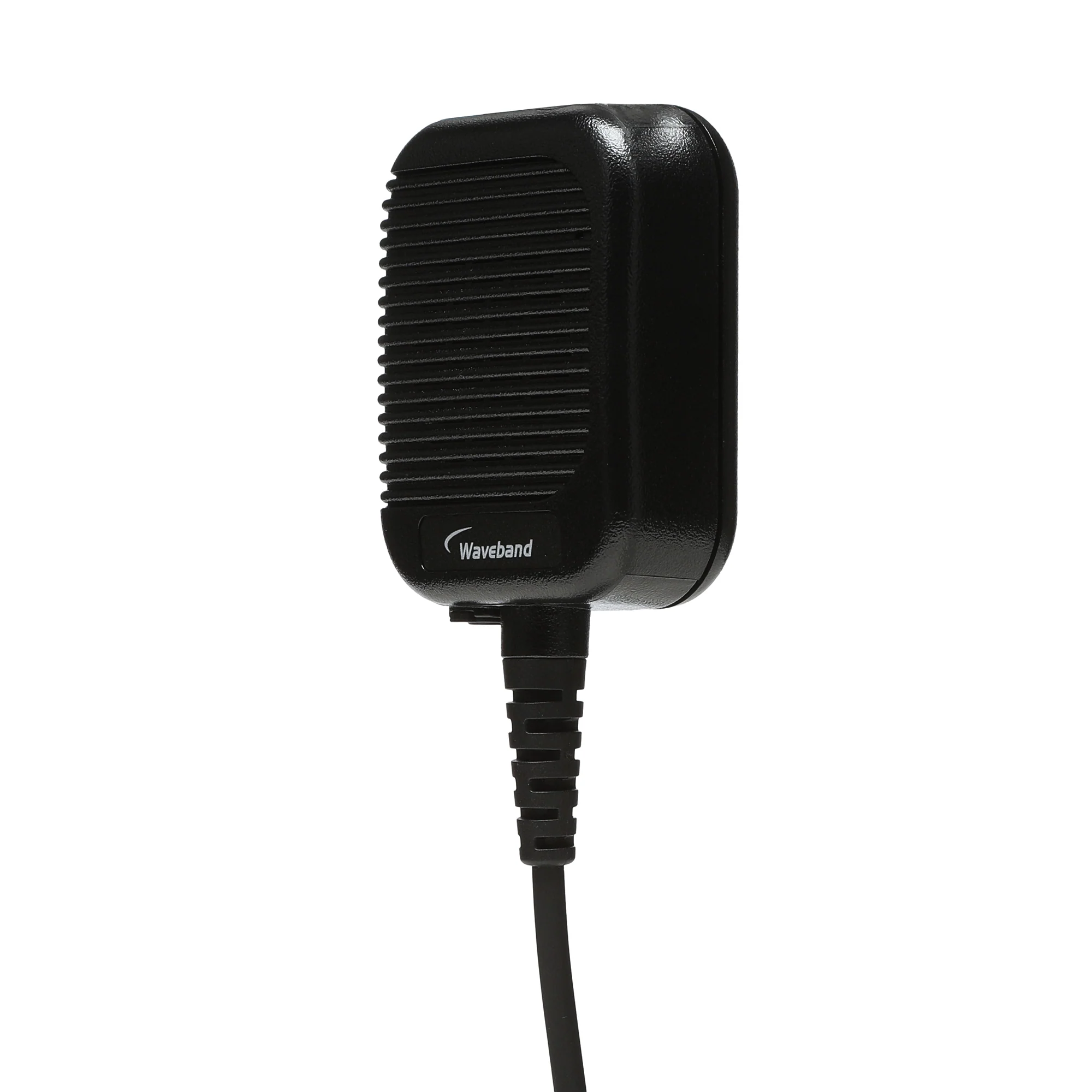

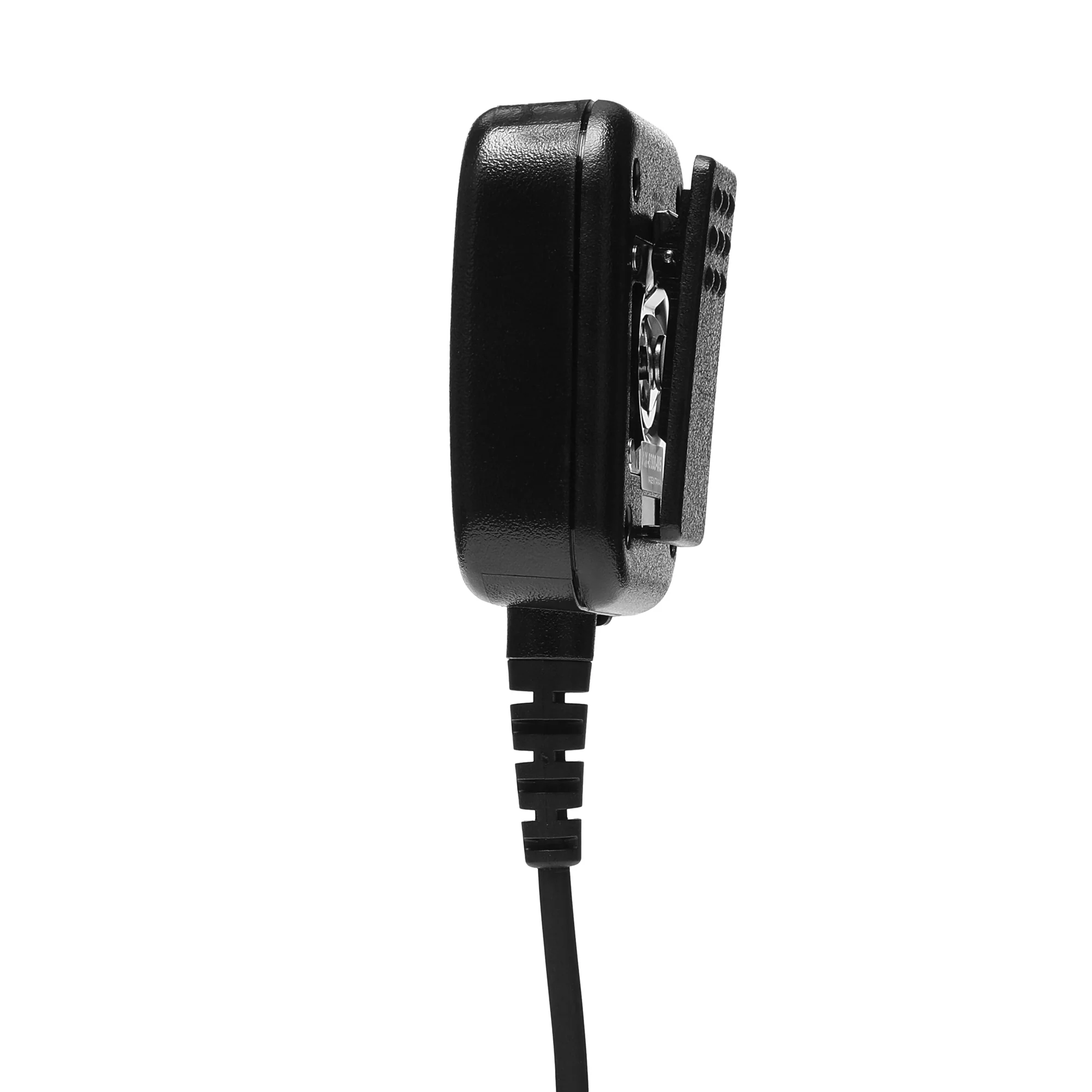

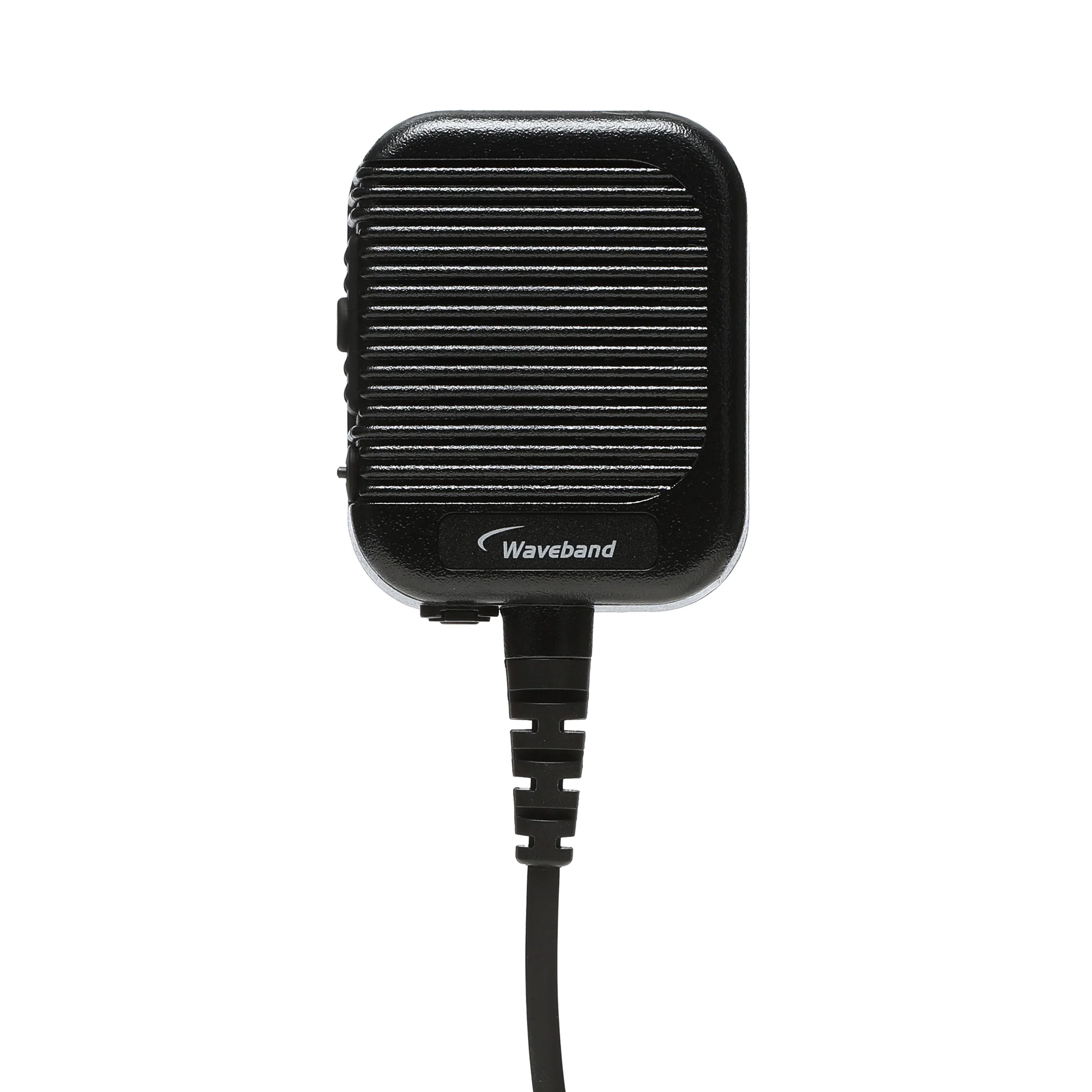

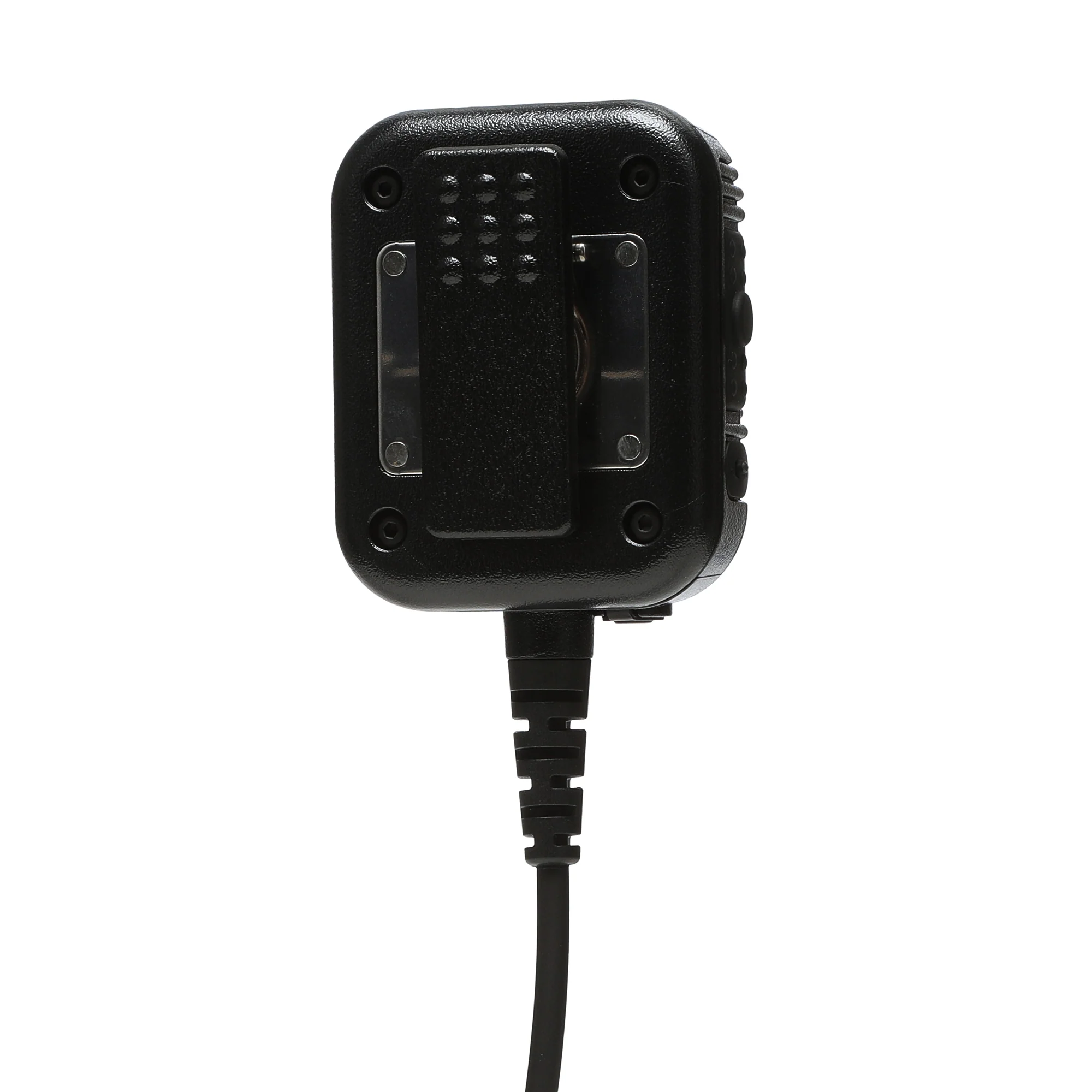

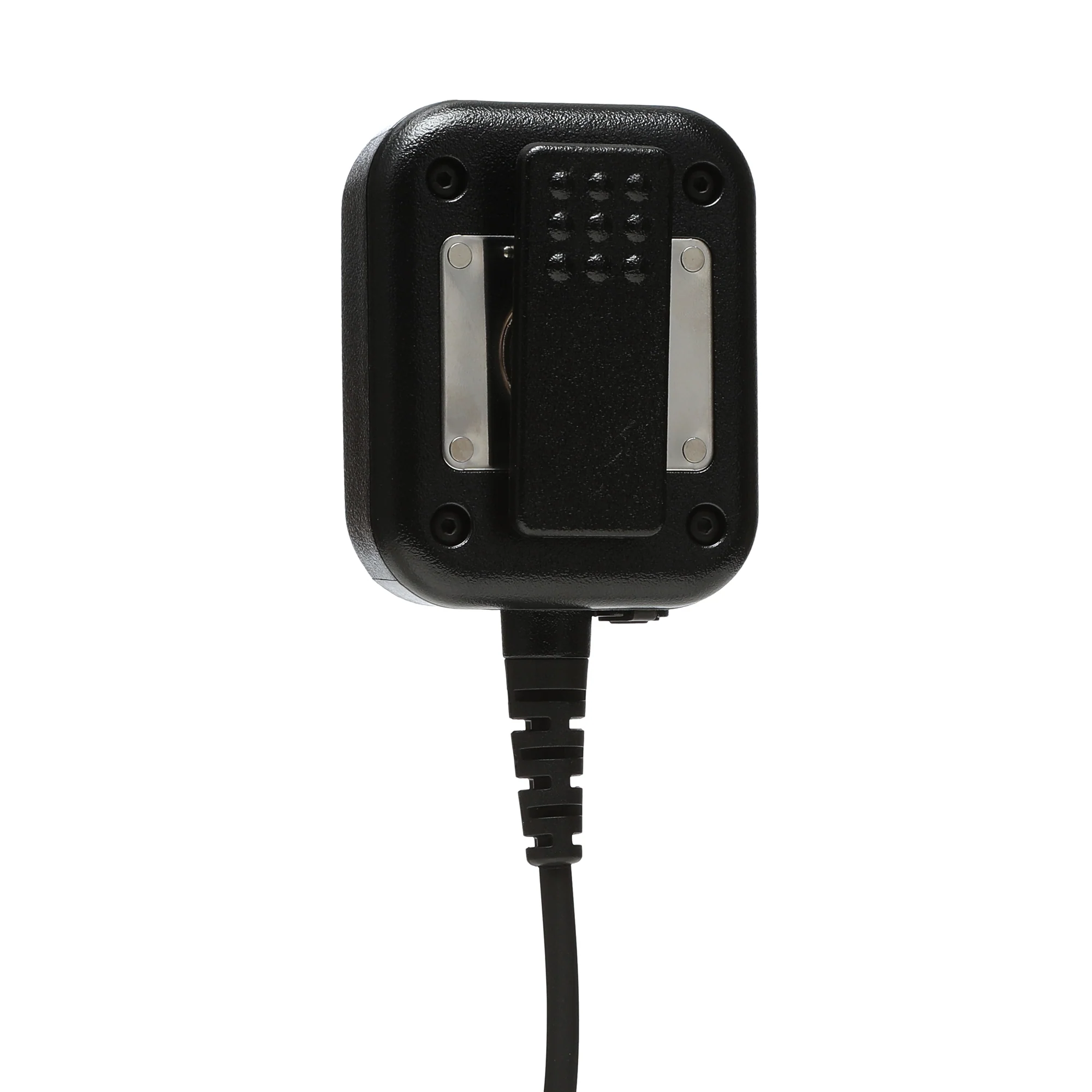

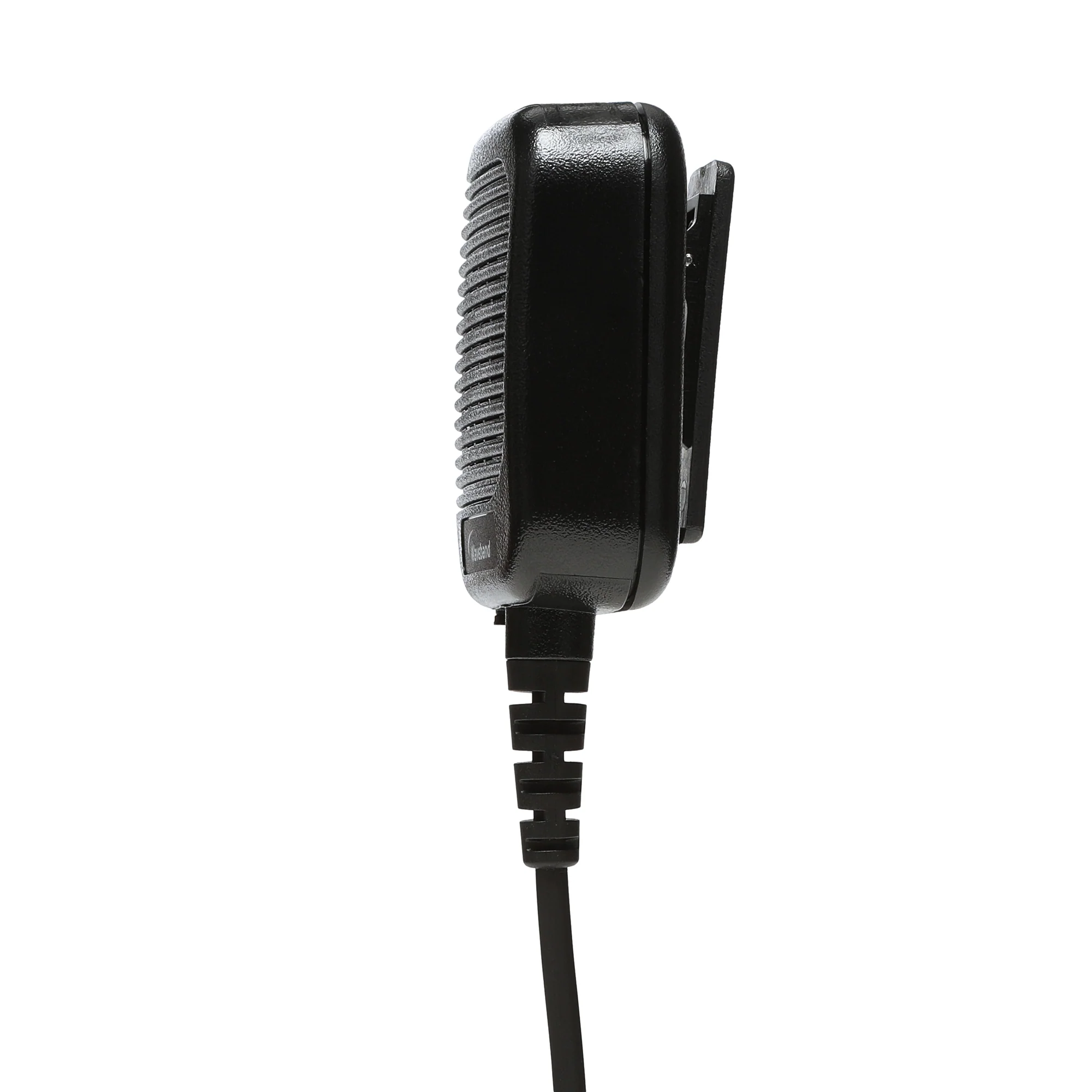

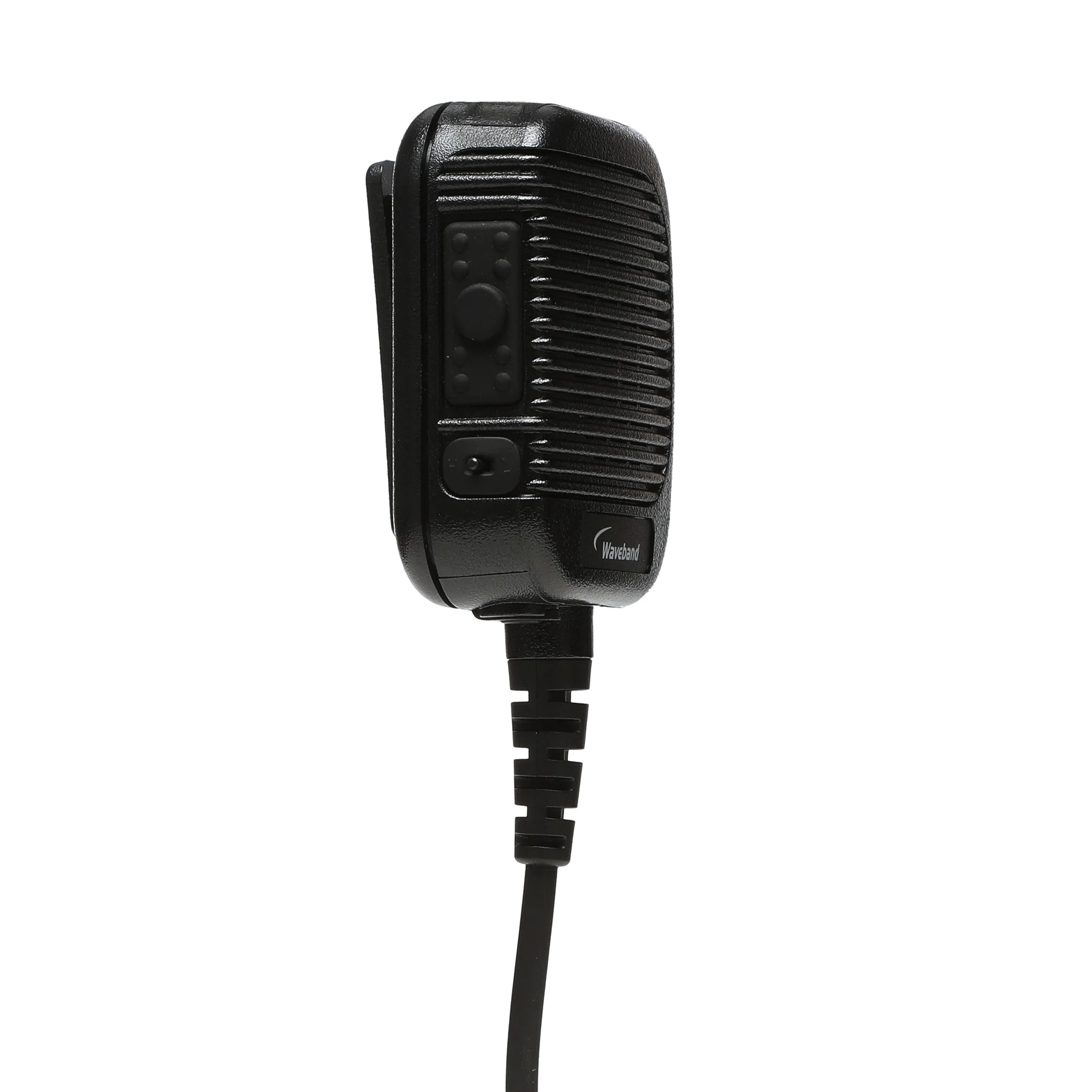

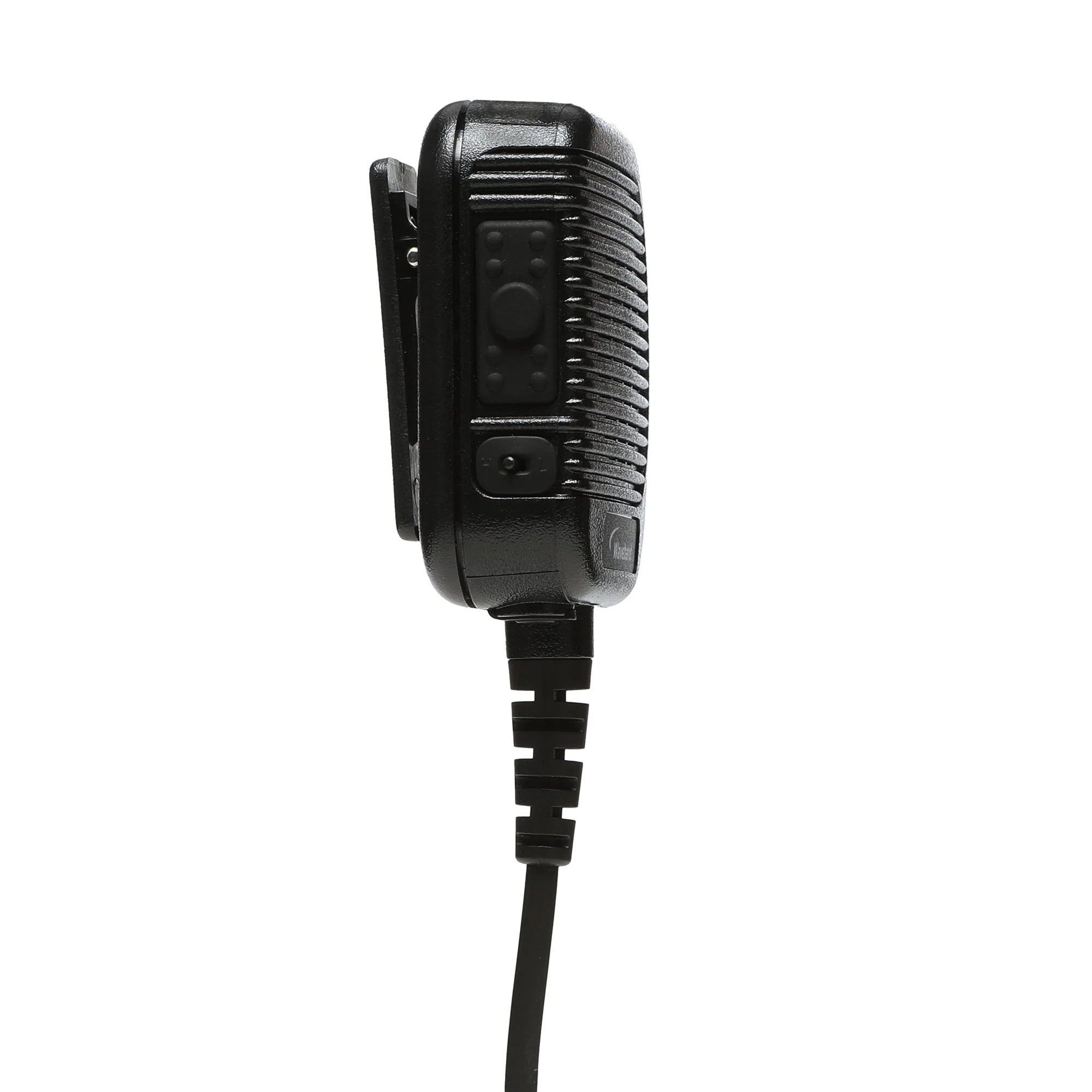

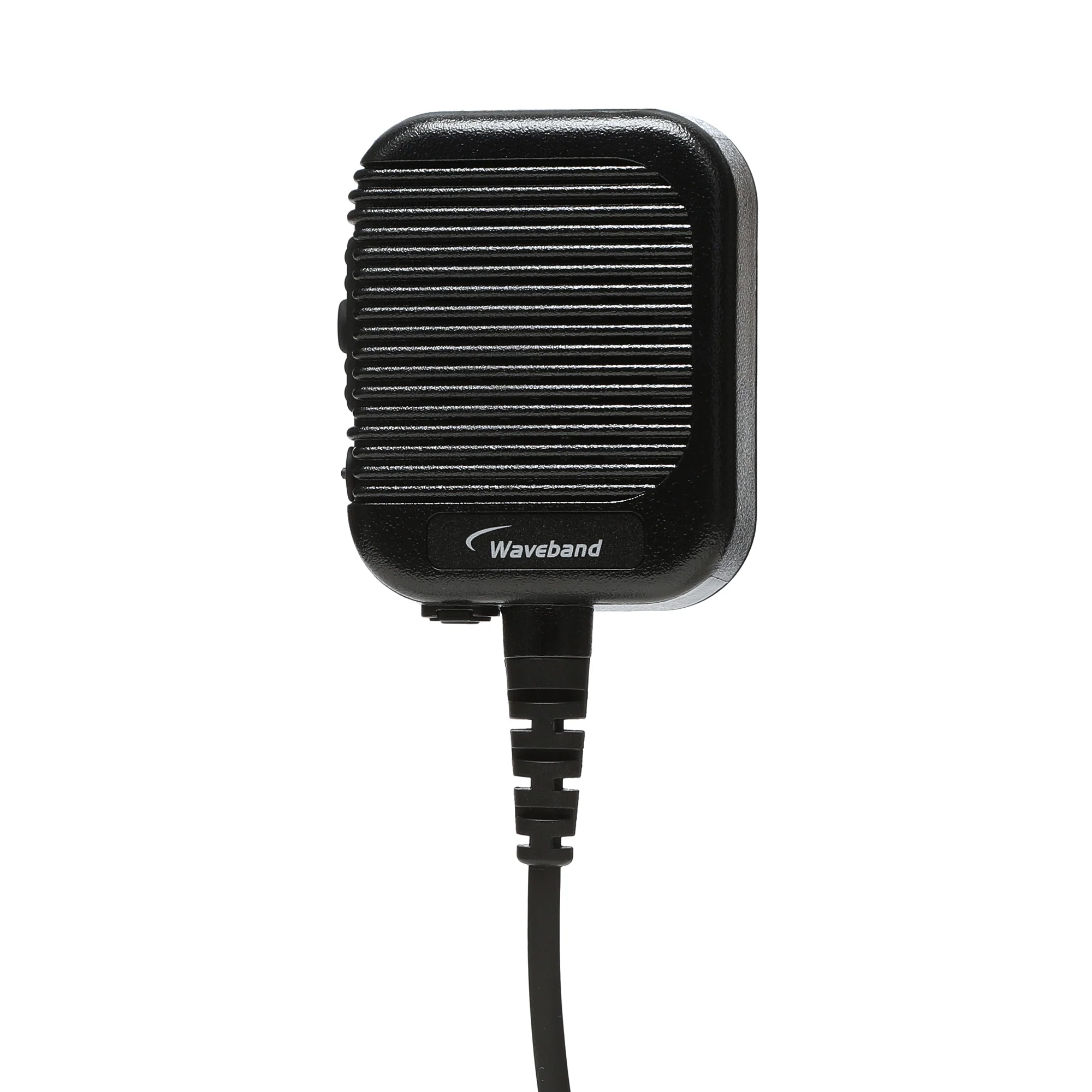

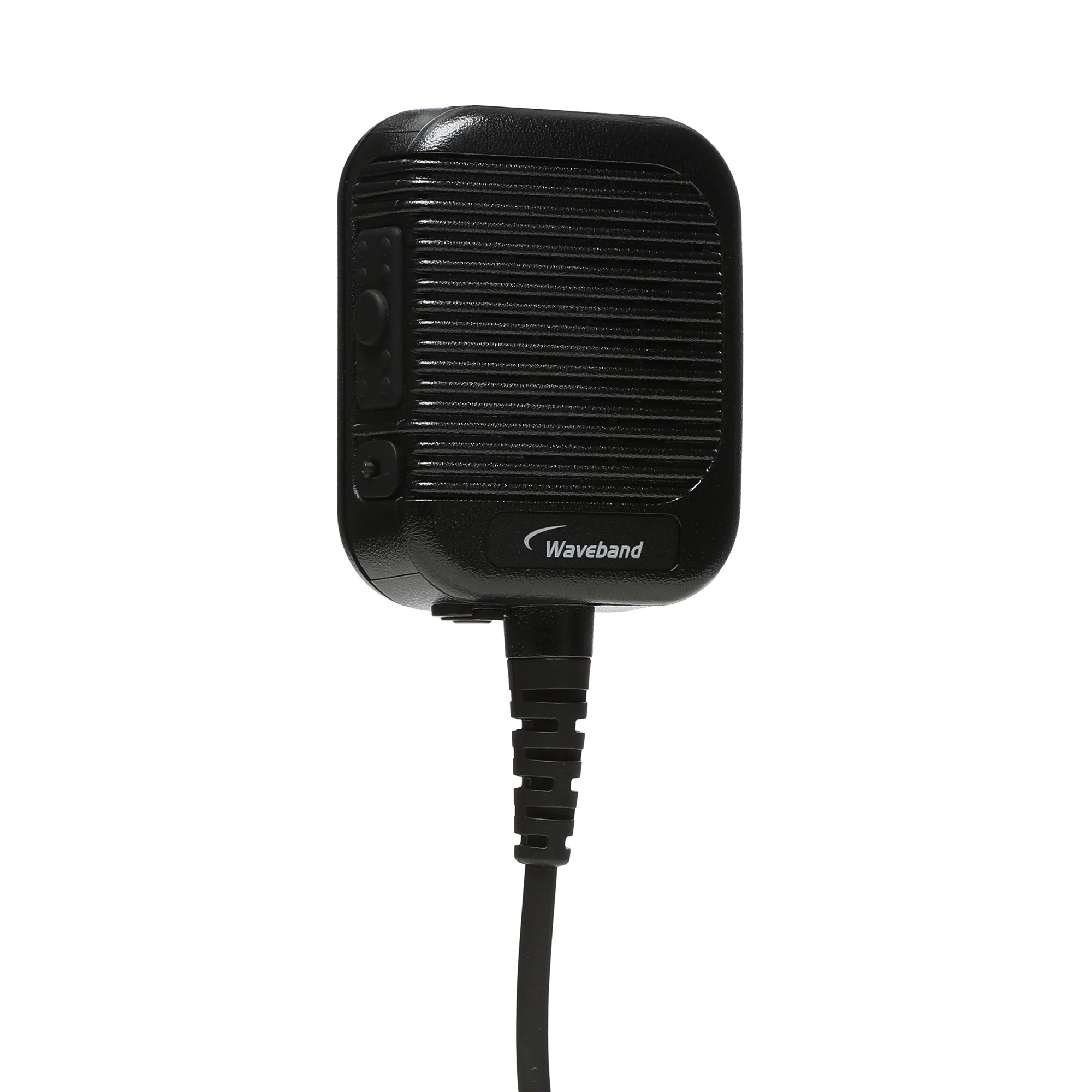

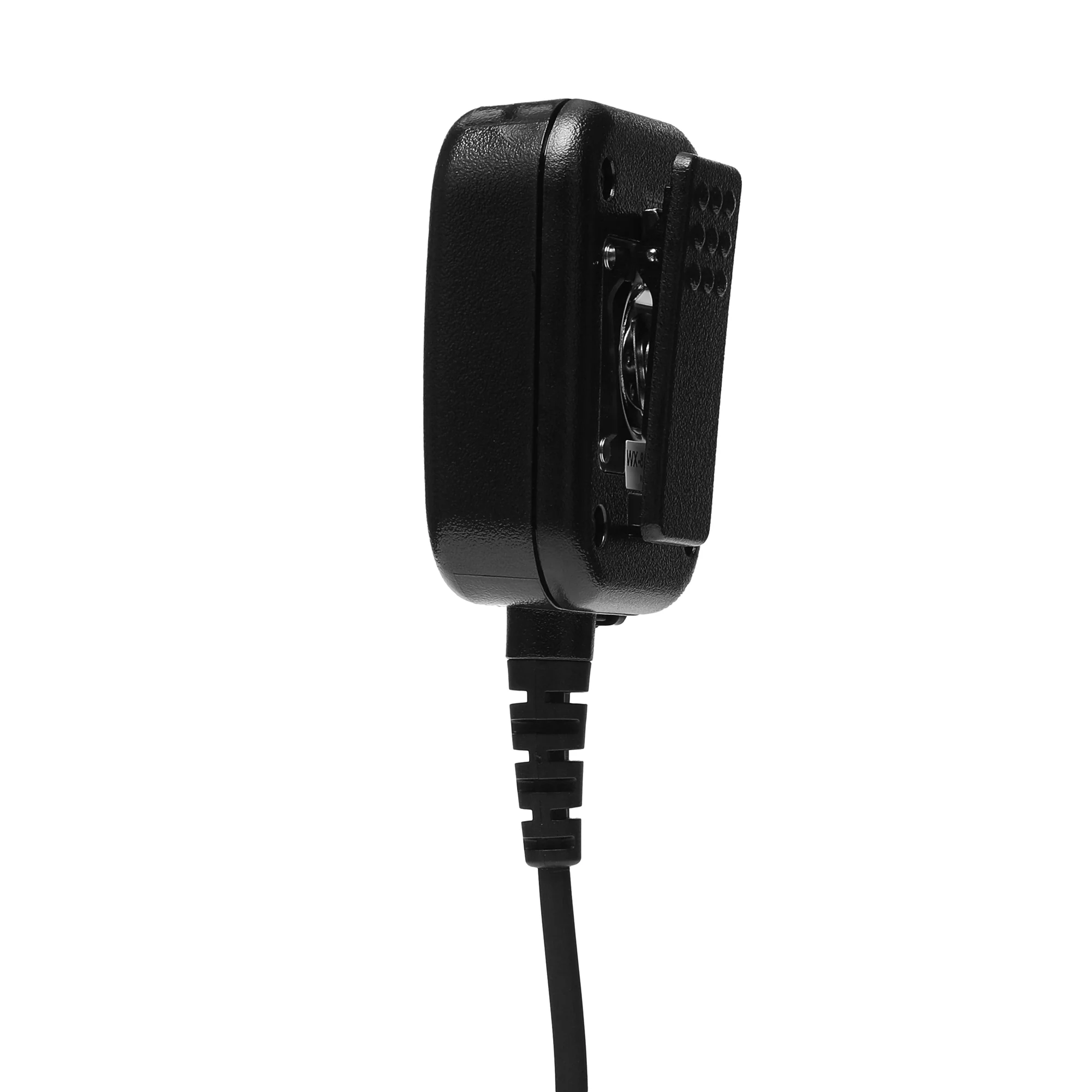

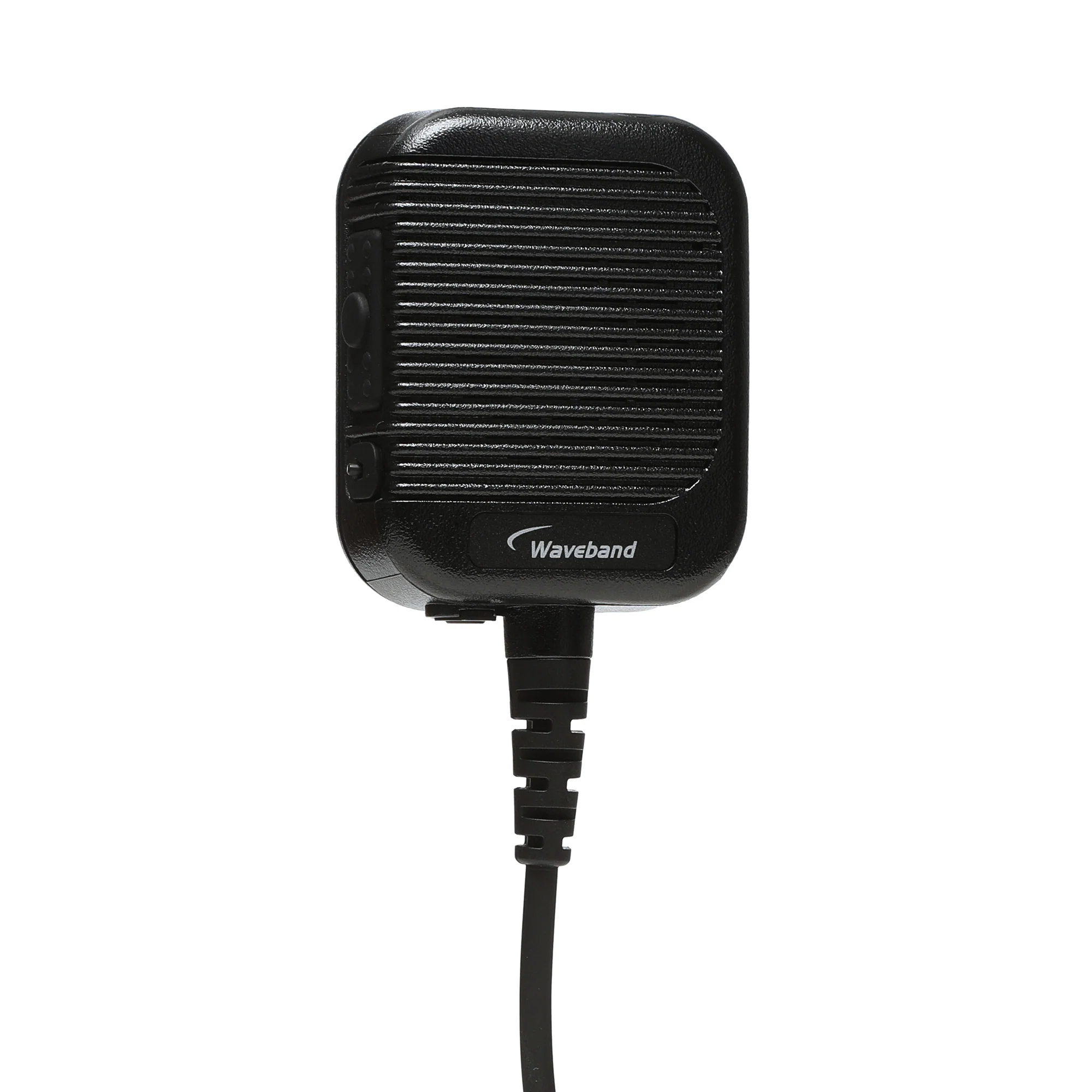

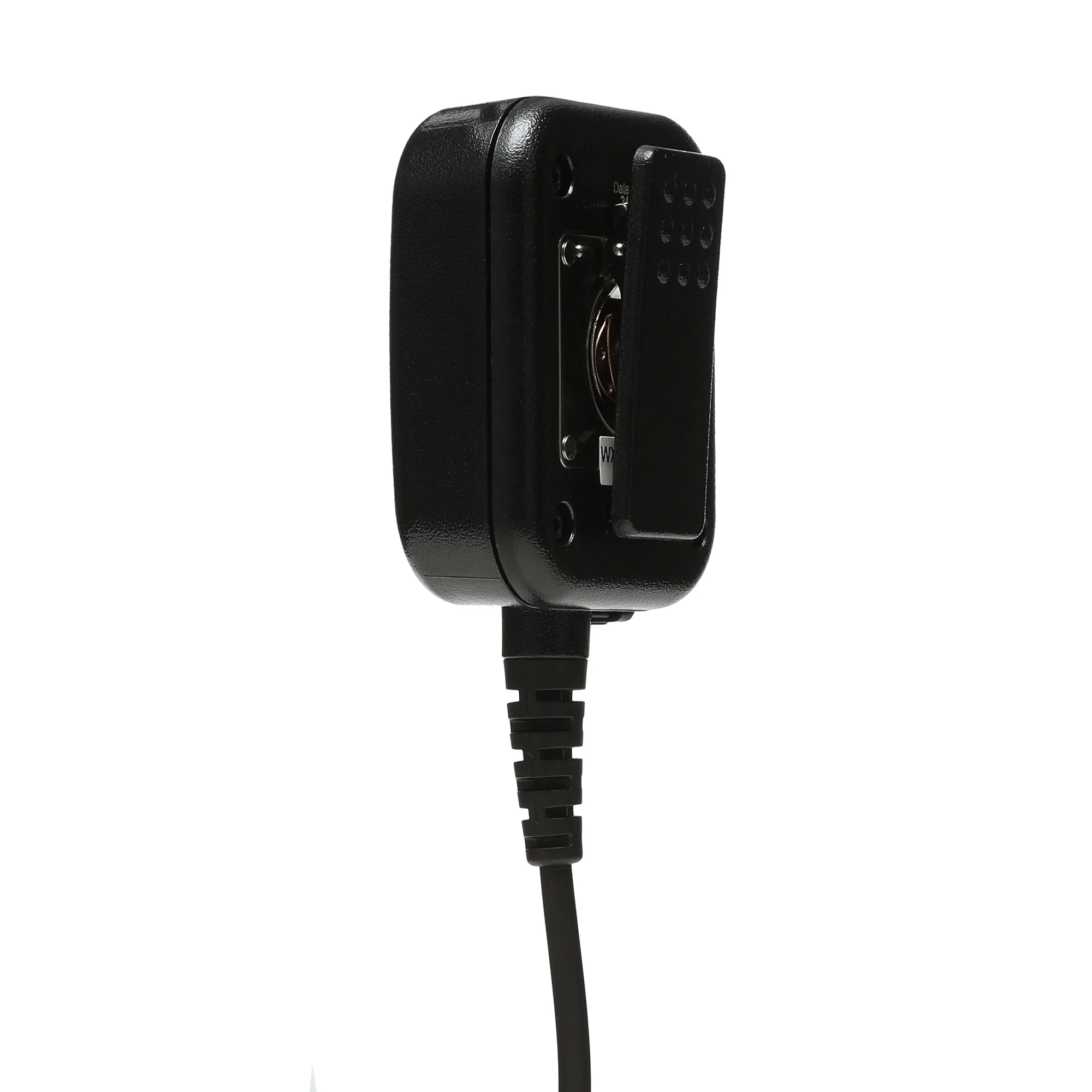

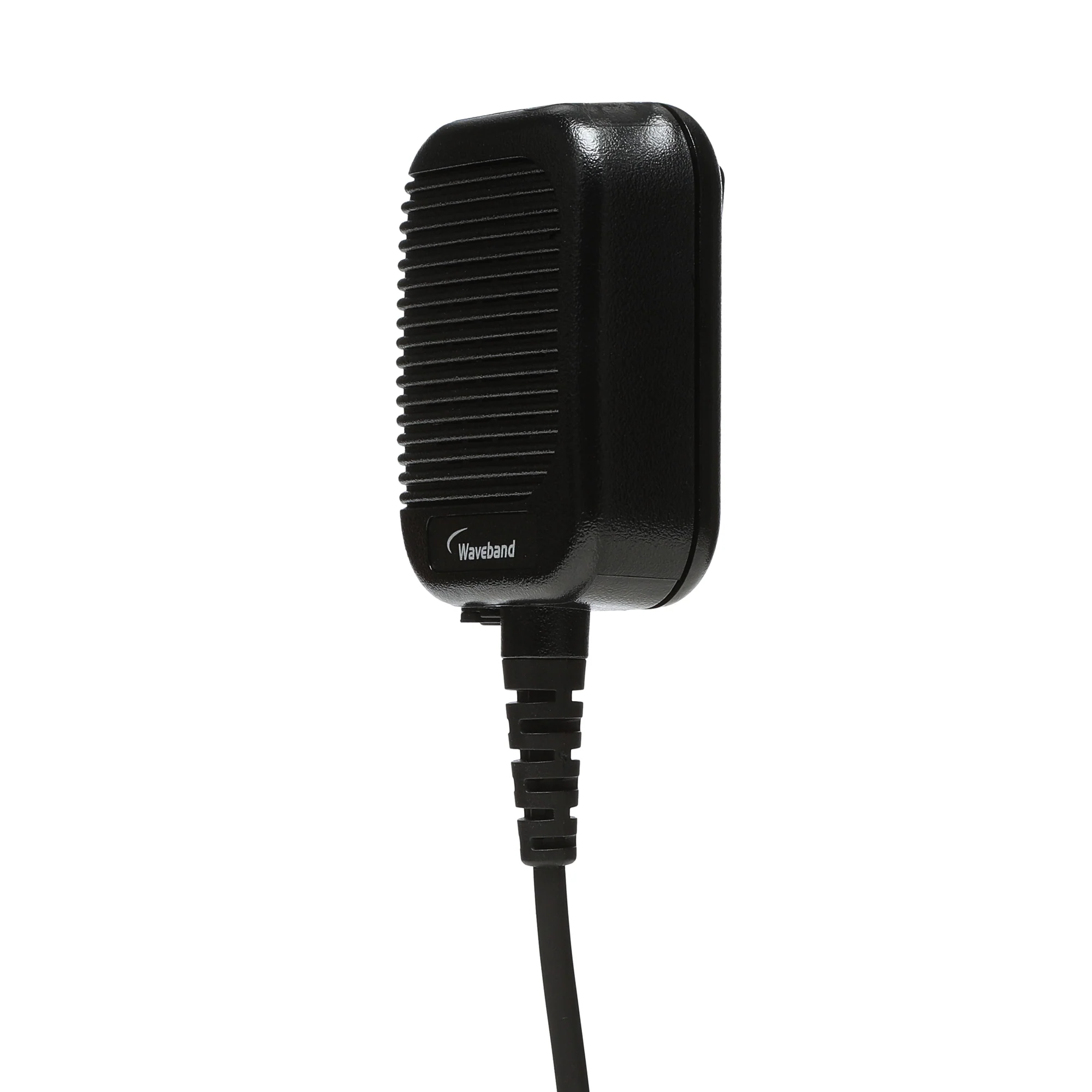

RMN5038A Motorola Remote Speaker Microphone for MTS 2000

Remote Speaker Microphone - Submersible

Public Safety Grade fully waterproof/Submersible Mil Spec 810F certified speaker microphone with volume control and 3.5mm accessory jack.

Compatible with Motorola XTS 1500/2500, 3000/5000, Motorola HT1000/MTS2000, & Ef Johnson 5100 Series Radios.

AVAILABLE FEATURES
- Emergency Button
- High/Low Volume
- Antenna Jack
- 2.5mm, 3.5mm or 3.5mm threaded audio jack

CABLING
- Jacket: 5.5 Polyurethane, Kevlar Reinforced

MECHANICAL
- Axial Pull at Speaker Mic Head: 50lbs

ENVIRONMENTAL
- RoHS Compliant
- Kevlar Reinforced Professional Grade - MILSPEC 810F

SPEAKER
- Transducer: Moving coil dynamic speaker
- Impedance: 8 ±15% @1KHz
- Sensitivity: 120 dB±10%@1KHz
- Resonance: freq (F0) 400HZ±20%
- Frequency: response F0~9KHz
- Rated input power: 0.5W
- Maximum input power: 1W

MICROPHONE
- Type: Noise Cancelling (available without)
- Transducer: Electret condenser microphone
- Sensitivity: -34±2dB@1KHz 2.2K 3V 0dB=1v/pa
- Impedance: Max:2.2k @1KHz
- Directivity: Omni-directional
- Frequency: 100Hz—16000Hz
- Max operation voltage: 10V
- Standard operation voltage: 3V
- Current consumption Max: 0.5mA
- S/N ratio Min: -34dB @1KHz

CERTIFIED MIL-STD-810F
- Low Pressure Altitude (MIL-STD-810F, Proc. 500.4)
- High Temperature Storage, Cyclic (MIL-STD-810F, Method 501.4)
- High Temperature Operation, Cyclic (MIL-STD-810F, Method 501.4)
- Low Temperature - Storage (MIL-STD-810F, Method 502.4)
- Low Temperature - Operation (MIL-STD-810F, Method 502.4)
- Temperature Shock (MIL-STD-810F, Method 503.4)
- Solar Radiation (MIL-STD-810F, Method 505.4)
- Wind Driven Rain (MIL-STD-810F, Method 506.4)
- Humidity (MIL-STD-810F, Method 507.4)
- Salt Fog (MIL-STD-810F, Method 509.4)
- Dust Robustness (MIL-STD-810F, Method 510.4)
- Humidity (MIL-STD-810F, Method 507.4)
- Salt Fog (MIL-STD-810F, Method 509.4)
- Random Vibration (MIL-STD-810F, Method 514.5)
- Mechanical Shock Exposure (MIL-STD-810F, Method 516.5)
- Shock-Transit Drop (MIL-STD-810F, Method 516.5)
- Temporary Water Immersion IP67: 1m 31min

Cable Stretch Cycle Exposure:
50,000 stretches, 25,000 rock and twist cycles - 270 degrees rock and 90 degrees twist. 3:1 extension ratio 25C
- Cable Pull Strength at Head: 50lbs
- Electro Static Discharge (ESD) Immunity Test: (IEC/EN 61000-4-2)

Equivalent to: Motorola RMN5066B, RMN5038A, RMN5088 Otto Evolution V2-10173

Waveband# WX-8000-M5
