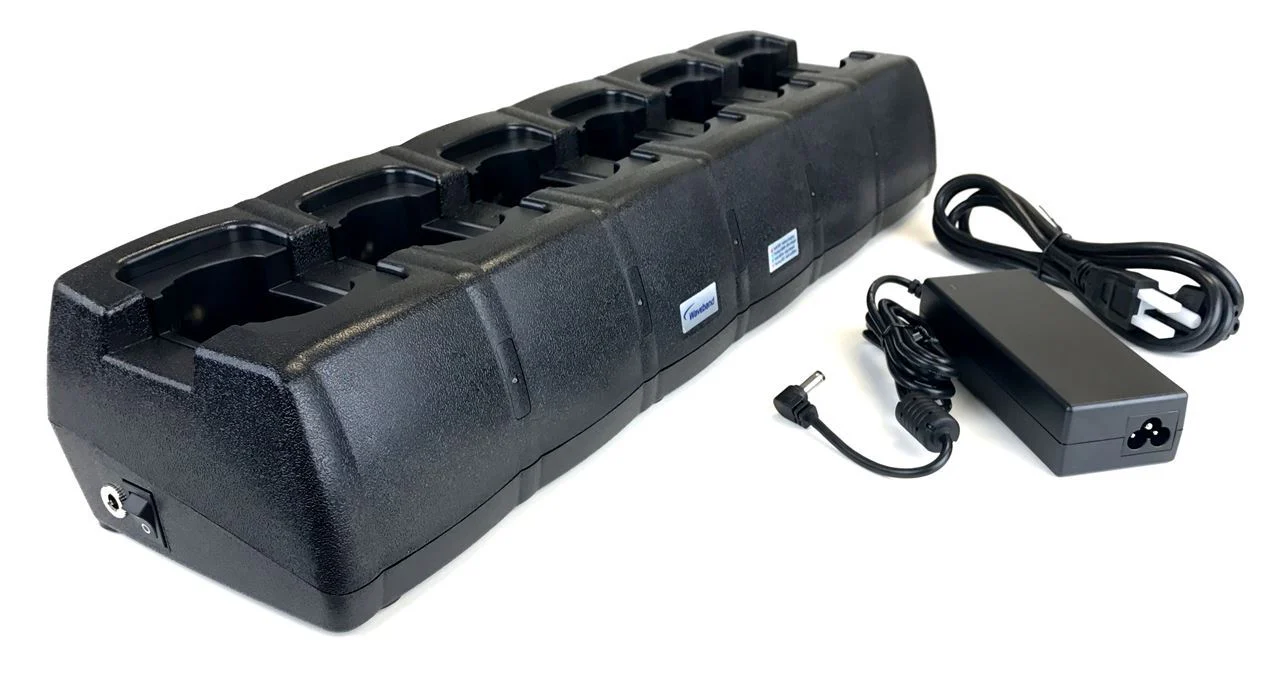

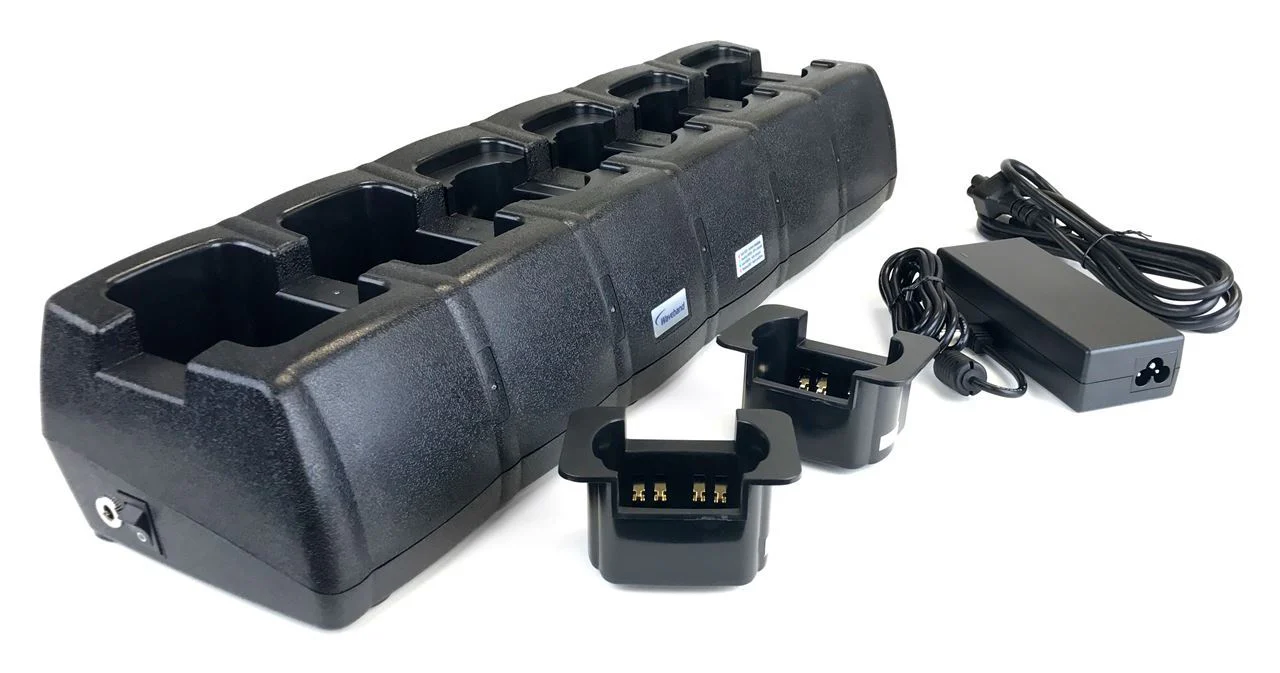

Six Station Lithium-Chemistry Charger For L3Harris XL-150P Radio
Keep your Harris XL-150 radio powered ensuring uninterrupted critical communications.
You know your radio is your lifeline this is why keeping you radio powered is not an option. Our Two-Way Radio Battery chargers have been tested and approved for use in critical applications by the U.S. Military, Police Forces and Fire Departments nationwide.
Intuitive design that allows for use with multiple two-way radios, or to be changed in the future.
Benefits:
- Guaranteed to work with Waveband, and OEM batteries maximizing your batteries and two-way radios overall performance.
-
Rapid charging that limits radio communication down times. High capacity batteries typically are fully charged in 3-4 hours.
-
Indicator lights let you know when your battery is fully charged and will last the entire shift.
Continuous charging that prevents Harris XL-150 batteries from dying and the need to swap out batteries.
Features:
- The radio may stay powered on while charging.

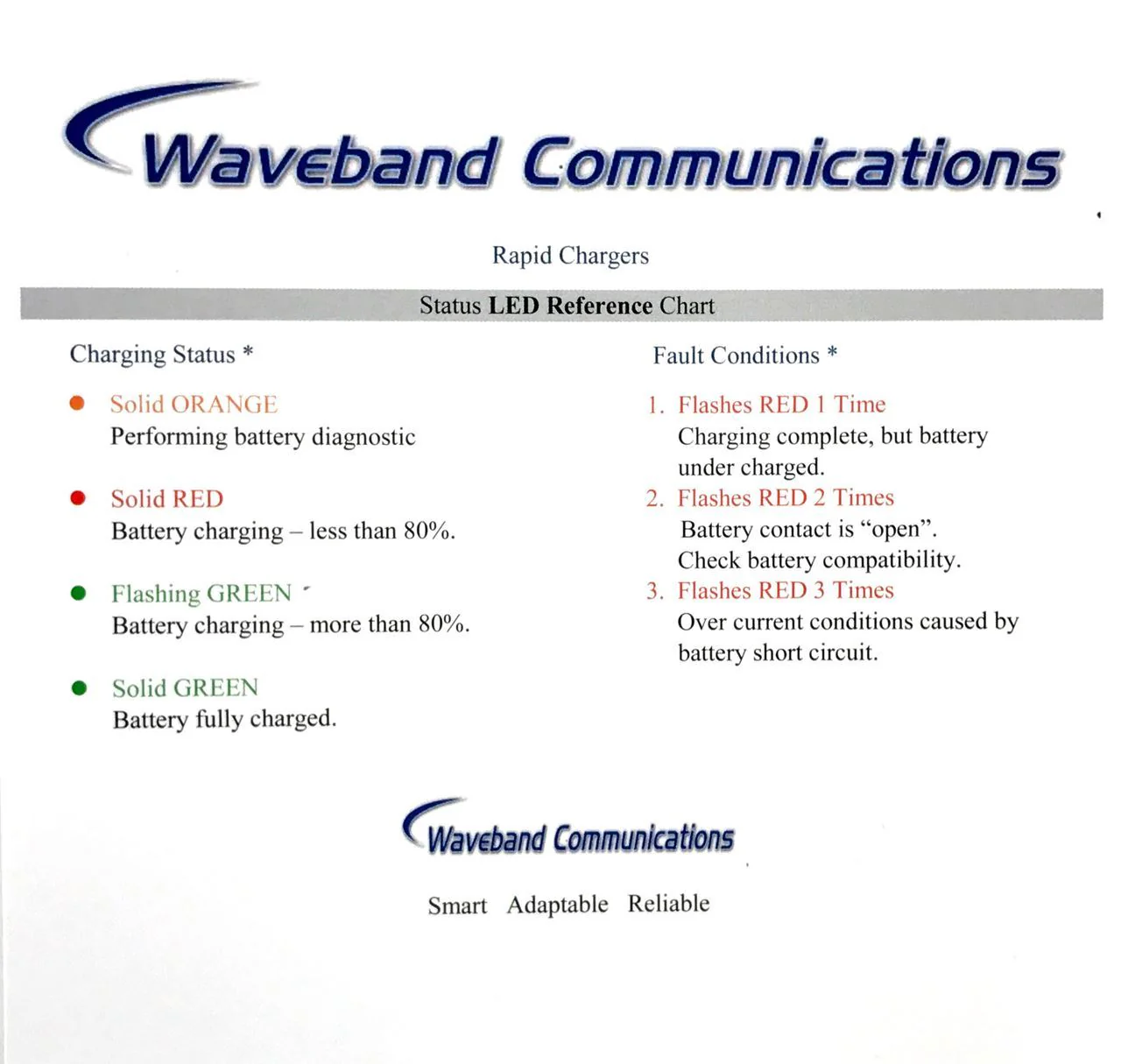

- Led status light illuminates (green, red, orange) during the charging process providing charging progress.

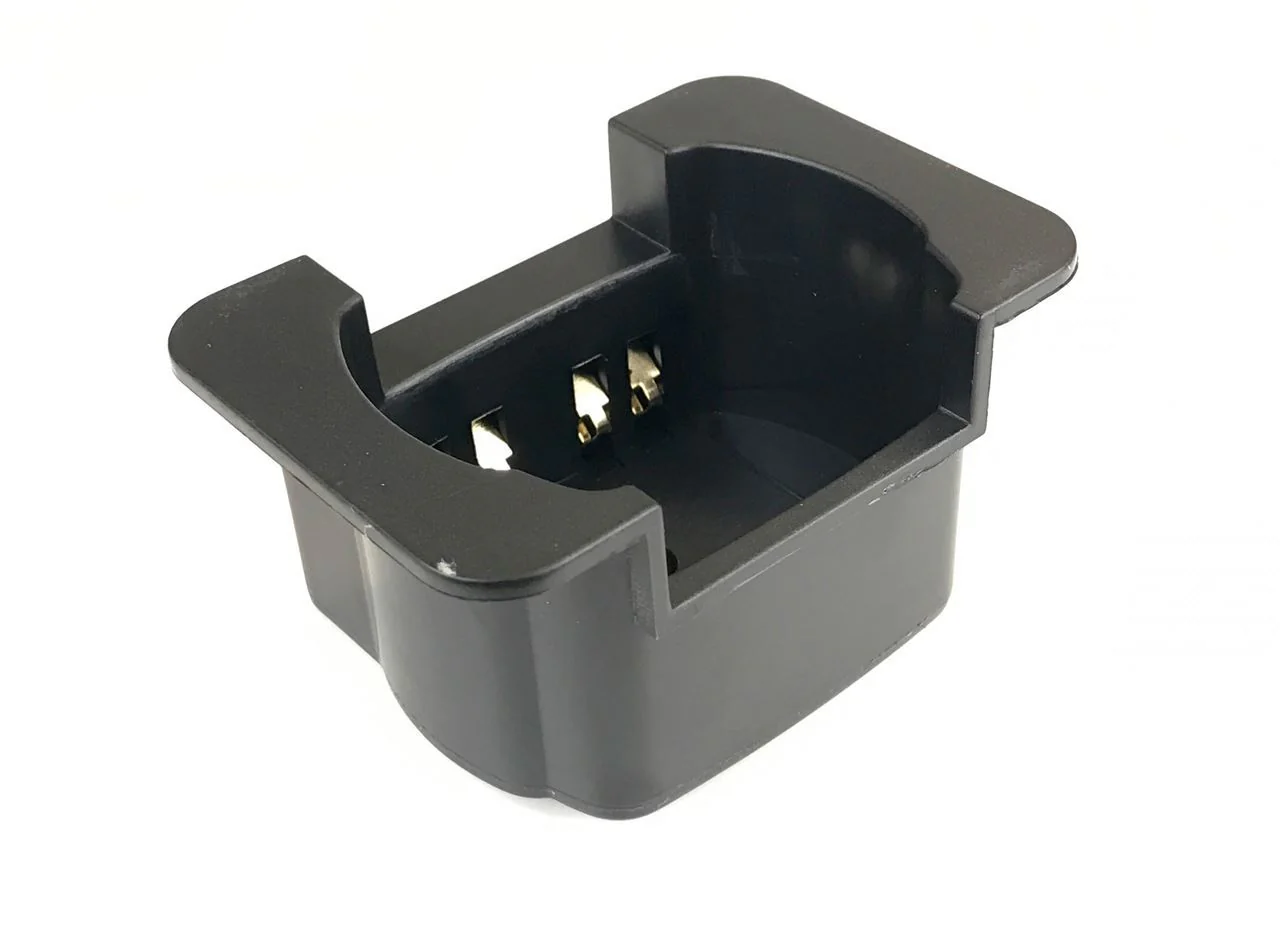

- Utilizes replaceable pods allowing the charger to be updated for future use and with multiple radio models or brands.
- Compact designs require less vehicle space than other two-way radio chargers.
- It provides cold and hot battery monitoring and other important battery warnings.
- Certified to meet the U.S. Department of Energy and California Energy Commission requirements for energy conversation.
Specifications
- Input Voltage: 115V 50/60Hz AC
- Charge Time: 4-5 hrs maximum capacity.
- Charge Current: 1000 mAh in Constant
- Current Charge phase.
- Charge Method: Constant Current - Constant Voltage with end-of-charge
- Operating Temp:0°C to 45°C (32°F to 113°F)
- Storage Temp: -20°C to 60°C (-4°F to 140°F)
- Length: 18 inches (457.2 mm)
- Height: 3.62 inches (92.07 mm)
- Weight: 4.1 lbs (1.85 kg)
Warranty
Each charger is guaranteed to be free from defects in materials and workmanship for 24 months from the date of shipment under normal use.
Compatible with the following radio models:
L3 Harris Unity XL-200 Portable, L3 Harris XL-185, L3 Harris XL-150, L3 Harris XL-400
Download user manual for Harris XL-200 multi-unit charger
Frequently Asked Questions:
What is included with a Waveband two-way radio charger?
Our chargers include an AC adapter, wall plug, comprehensive user manual, and interchangeable adapter plates. The interchangeable plates allow the charger to be used with different radio models for future use.
Are you able to charge the Harris XL-150 battery while it's attached to the two-way radio?
Yes, you can charge Waveband or OEM batteries while they are attached to the radio.
How long will it take to charge my two-way radio battery with a Waveband two-way radio charger?
Charge time depends on the capacity of the battery. Battery capacity is measured in Mil Amp Hours (Mah). The higher the Mah of the battery, the longer it will take to charge. Typically, Waveband chargers can fully charge your battery within 3-4 hours.
Will the charger work with OEM batteries?
Our chargers are designed to charge Waveband manufactured two-way radio batteries AND OEM (Original Equipment Manufactured) two-way radio batteries from major radio models including but not limited to Motorola, Kenwood, Harris, BK Technologies and more. Here is our charger guide for more information.
What is the warranty?
Our charger warranty policy is 12 months from the date of purchase. This warranty covers any manufacturing defects and workmanship.
How do I know when my battery is fully charged?
Our six bank and desktop two-way portable radio chargers are equipped with status LED lights that indicate the charge cycle. When a battery is placed on the charger a red LED status will illuminate, indicating a normal charge. When the battery reaches 80% capacity, the LED status will illuminate a flashing green. The LED status will indicate a solid green, meaning a fully charged battery.
Where is the user manual for this charger?
You can find the user manual located on each designated product page in the description. For more user manuals and information, check out our resources page.
How do I hardwire my Waveband In-vehicle two-way radio charger to my vehicle's battery?
You can instructions on how to hardwire your Waveband in-vehicle two-way radio charger at Waveband Car Charger Hardwire Instructions
Do you offer free shipping?
Yes any battery order over $299 receives free standard shipping
Note: All government customers are exempt from tax. The tax will be excluded once the checkout is completed.
